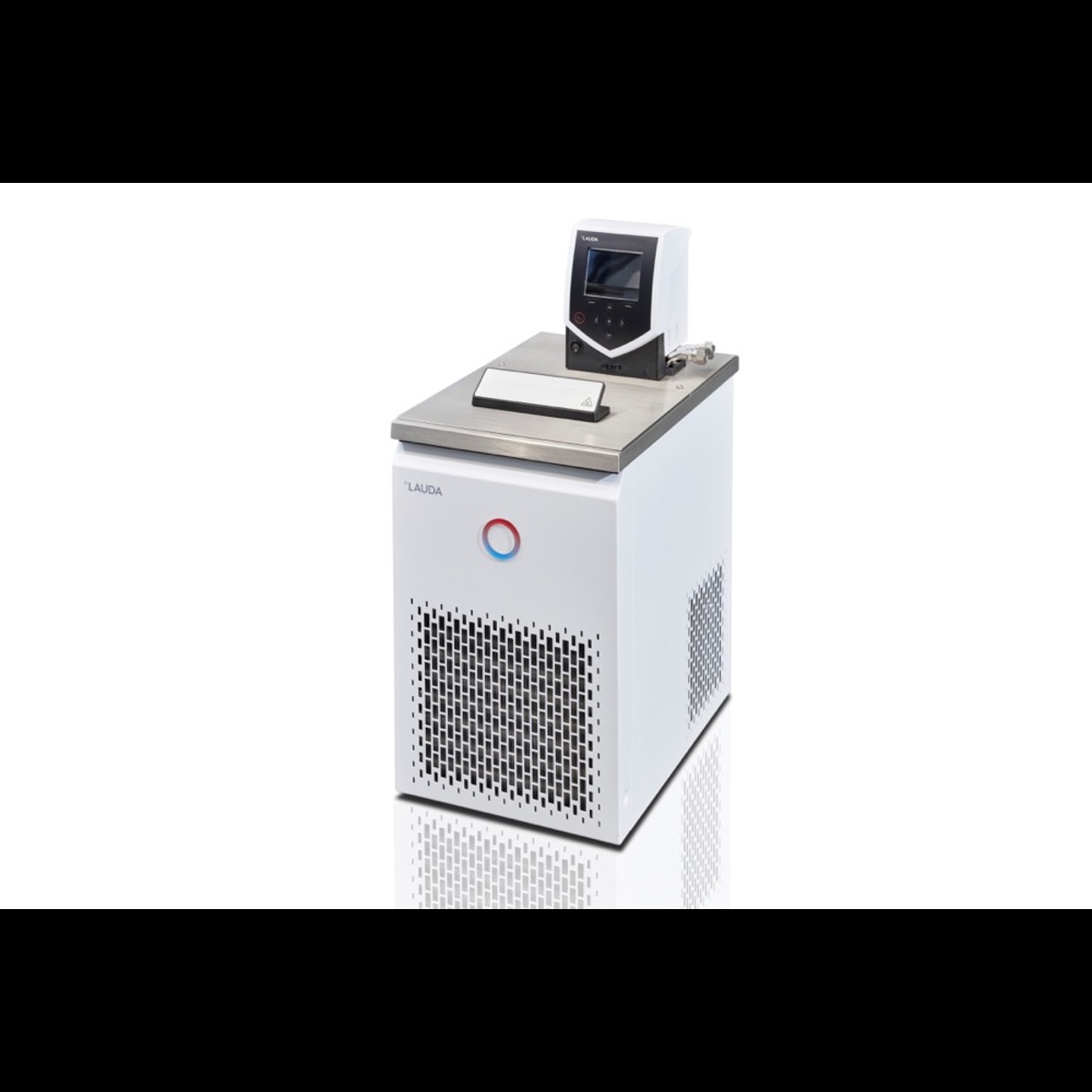

Lauda – ECO Heating Thermostats with Stainless Steel Bath
Economical Laboratory Heating Thermostats with Stainless Steel Bath

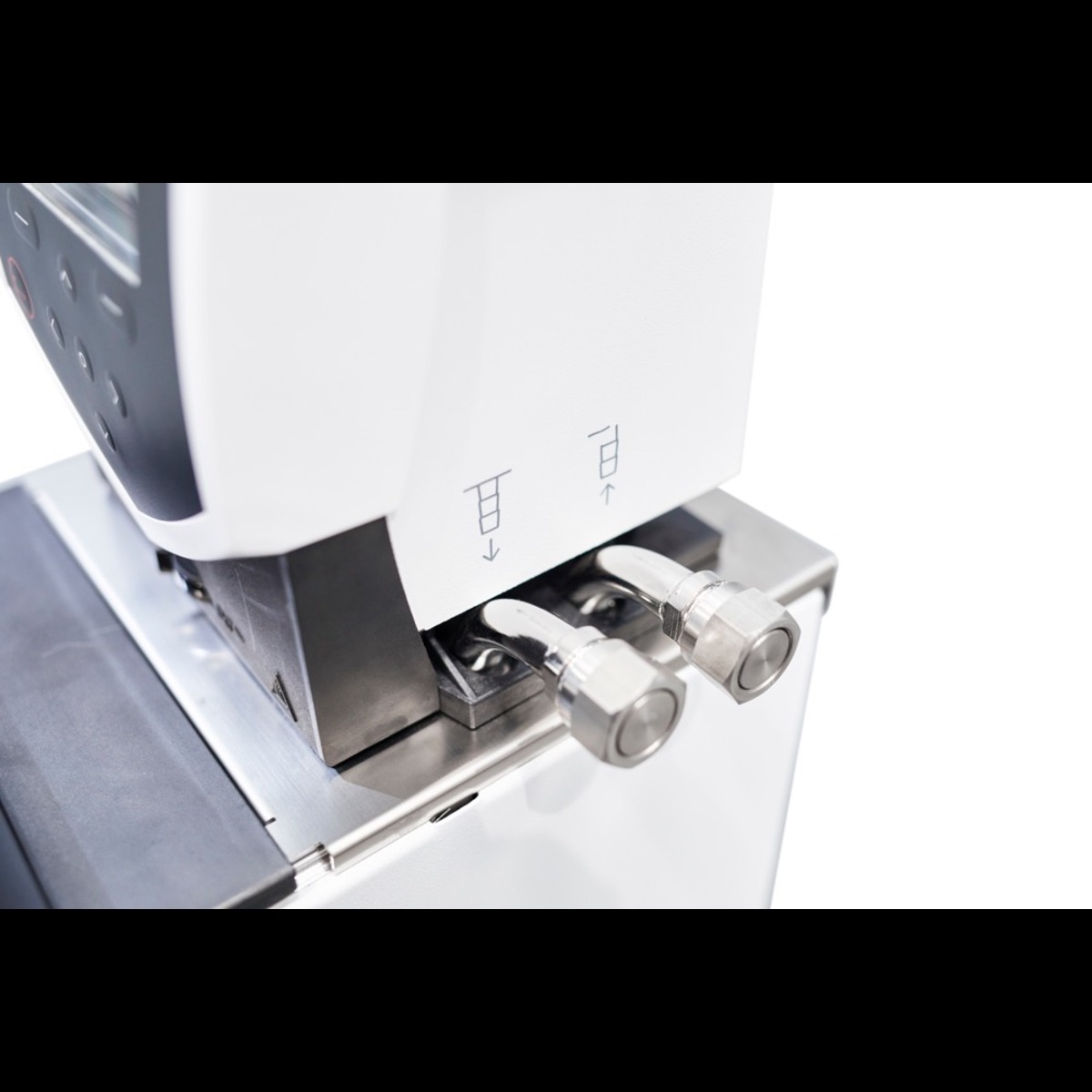

LAUDA ECO stands out due to its range of functionality and ease of use. A menu navigation in plain text allows easy operation of the devices. Both control heads are equipped with a mini-USB interface as standard. Further interfaces are available as modules. Another innovation is the practical allocation of a flow-rate switch at the front on the control head. This means that individual adjustment of the flow between internal and external circulation is possible even during operation.
Precise, Economical, Flexible
LAUDA ECO heating thermostats are suitable for a termperature range of up to 200°C. All heating thermostats are equipped with a cooling coil as standard.
LAUDA ECO Heating Thermostats – Control Head Silver
The control head Silver with 2.0 kW heater power (230 V) are now perfectly suited for thermostatting tasks up to 200°C. They are fitted with a monochrome LCD display. LAUDA ECO Heating Thermostat model E 4 S is fitted with a bath cover and pump connections for external applications with nipples made from plastic.
LAUDA ECO Heating Thermostats – Control Head Gold
LAUDA ECO control head Gold with heating power of 2.6 kW (230 V) have a working temperature of up to 200°C. They are provided with a larger colored TFT display. Temperature profiles can be displayed graphically. A comprehensive programer with five programs and 150 temperature-time segments is a further distinctive feature compared to Silver. LAUDA ECO Heating thermostat model E 4 G is fitted with a bath cover and pump connections for external applications with M16 × 1 threads.
Technical Specifications
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
|---|---|
| Heater Power (Silver) | 2.0 kW |
| Heater Power (Gold) | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath depth | 150 mm / 200 mm |
Available Models
| Technical Specifications | |
|---|---|
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.0 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 3…3.5 L |
| Bath Opening /Depth | 135 × 105 / 150 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.0 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 7.5…11 L |
| Bath Opening /Depth | 300 × 190 / 150 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.0 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 12…16 L |
| Bath Opening /Depth | 300 × 190 / 200 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.0 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 13…19 L |
| Bath Opening /Depth | 300 × 365 / 150 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.0 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 16…25 L |
| Bath Opening /Depth | 300 × 365 / 200 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.0 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 32…40 L |
| Bath Opening /Depth | 300 × 613 / 200 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 3…3.5 L |
| Bath Opening /Depth | 135 × 105 / 150 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 7.5…11 L |
| Bath Opening /Depth | 300 × 190 / 150 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 12…16 L |
| Bath Opening /Depth | 300 × 190 / 200 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 13…19 L |
| Bath Opening /Depth | 300 × 365 / 150 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 16…25 L |
| Bath Opening /Depth | 300 × 365 / 200 mm |
| Technical Specifications | |
| Working temperature range | 20…200°C |
| Temperature stability | 0.01 ±K |
| Heater Power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 32…40 L |
| Bath Opening /Depth | 300 × 613 / 200 mm |
