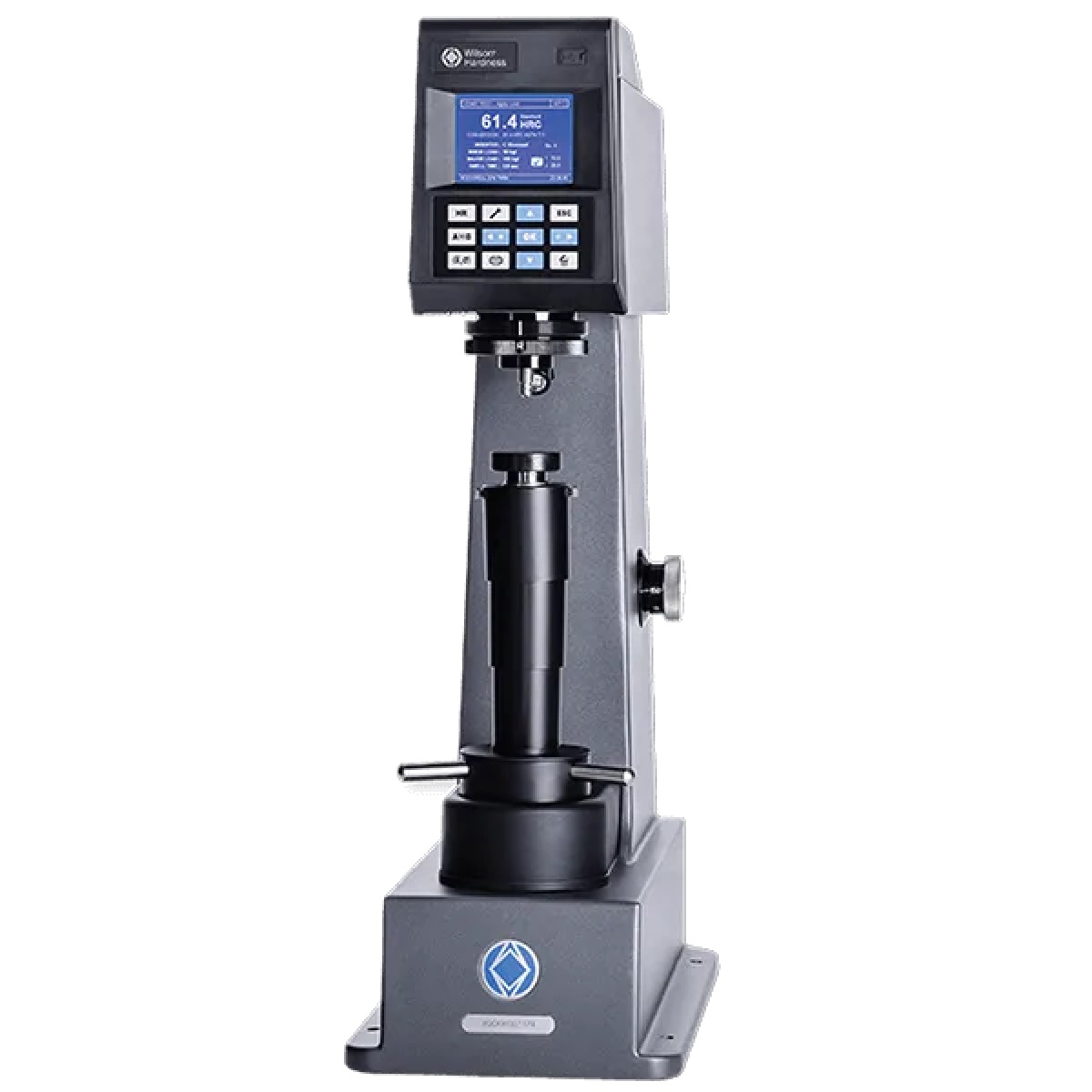

Buehler – Wilson Rockwell 574 Hardness Tester
The Wilson 574 Rockwell Hardness Tester is best-in-class for Gauge Repeatability and Reproducibility (GR&R). This deadweight, workhorse tester is available in Regular, or Regular and Superficial Twin Scale models with a load range from 3-150kgf. Notable features include a high-precision depth measurement system, auto preload brake, and an automated main load test cycle for accurate and repeatable testing. The user-friendly, built-in USB port facilitates rapid data transfer to Microsoft® Excel®, or other applications.
The Wilson Rockwell 574 Hardness Tester Series stands out for its quality, durability, and leading Gauge Repeatability and Reproducibility (GR&R) in hardness testing instruments. Offering regular scale or twin (regular and superficial scale) models, these testers conform to ASTM E18 and ISO 6508 standards, catering to various needs.
Key Features
Segment Leading GR&R Performance
- Experience unparalleled GR&R performance with the Rockwell 574. Its high-precision depth measurement ensures utmost accuracy for consistently repeatable testing.
Reliable Workhorse
- Built to endure high-volume production environments, witness demonstrated robust design with stainless steel internal components. Elevate your testing capabilities with a diverse range of dynamic accessories and anvil options, setting the standard for strength.
Easy to Use
- Powerful yet uncomplicated, this straightforward machine boasts an auto-braking system on preload for seamless operation. With a built-in USB port enabling rapid data transfer to Microsoft Excel or other applications, experience effortless usability and efficiency in one package.
Technical Specifications
| Description | Wilson Rockwell 574R Regular | Wilson Rockwell 574T Twin |
| Pre-load | 10kgf (98.07N) | 3, 10kgf (29.42, 98.07N) |
| Main-load | 60, 100, 150kgf (588.39, 980.67, 1471N) | 15, 30, 45, 60, 100, 150kgf (147.1, 294.19, 441,29, 588.39, 980.67, 1471N) |
| Hardness Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
| Test load type | Calibrated Spring (Minor Load), Dead weight stack (Major load) | |
| Test cycle type | Motorized with automatic pre-load brake | |
| Vertical test capacity | 11.43in [289mm] accessories may decrease available capacity | |
| Horizontal test capacity | 6.93in [175mm] at the top, 6.13in [155mm] at the bottom | |
| Indenters (optional) | 120º Diamond cone, 1/16in, 1/8in, 1/4in, 1/2in Ball | |
| Data-out | USB and RS232 | |
| Standards Compliant | ASTM E18, ASTM D785, ASTM B294, ISO 6508, JIS Z 2245, GB/T 230 | |
| Power | 100 – 240VAC, 60/50Hz | |
