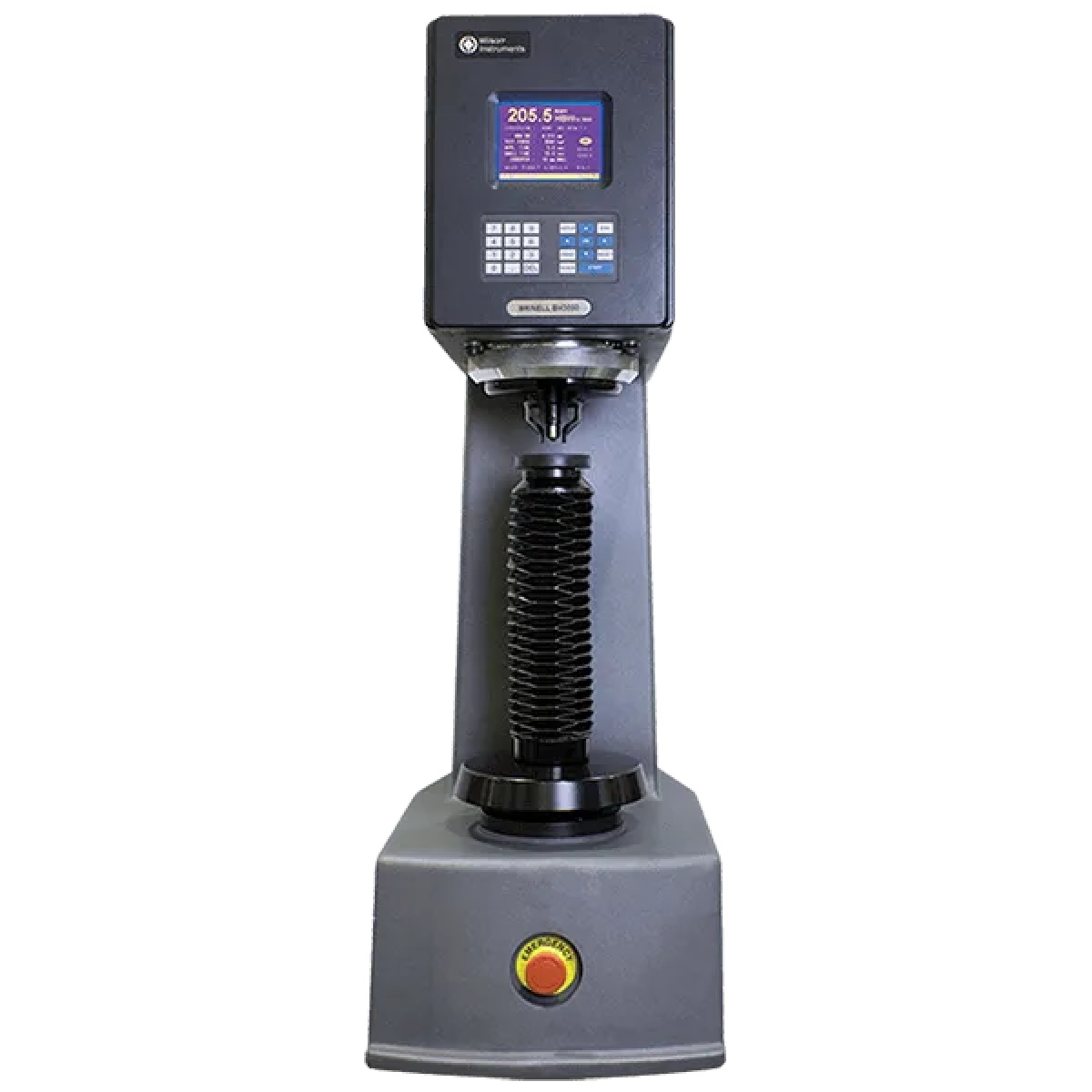

Buehler – Wilson BH3000 Brinell Hardness Tester
The Wilson BH3000 Brinell Hardness Tester, with a robust 3000 kgf capacity, covers a wide range of loads from 62.5 kgf to 3000 kgf. Engineered for durability in harsh environments, it features rugged construction, heavy-duty clamping, and protection. The closed-loop system ensures quick and precise test results, while integrated hardness calculations and conversions enhance ease of use. With a flexible load range, easy set-up, and deep reading microscope option, the BH3000 provides versatility and ease of use in any lab.
The Wilson BH3000 Brinell Hardness Tester stands as a robust Brinell hardness tester, boasting a wide range from 62.5 kgf to 3000 kgf. Crafted with rugged construction for resilience in challenging environments, this reliable hardness tester blends high rigidity and closed-loop load cell technology to ensure precise and secure load applications. Noteworthy features include a clamping device for part security, an intuitive user interface for easy setup and operation, a built-in keypad calculator for accurate HB hardness values, and an LCD screen, collectively enhancing the user experience.
Key Features
Rigid Workhorse
- Built with robust construction to endure demanding environments
- Clamping device to support secure parts with exchangeable anvils
- Accurate and efficient load cell technology
User-Friendly
- Simple, LCD screen with clear results and statistics
- Integrated hardness calculator for values and conversions
Complete Flexibility
- Wide load range of 62.5 kgf to 3000kg
- Optional optics for external measuring
- Extensive selection of specimen support with various anvils for any application
Technical Specifications
| Description | Wilson BH3000 Brinell Hardness Tester |
| Hardness Scales | HB |
| Display | Hardness HB value (after entering diagonal length into keypad calculator); Mean diagonal length; Test force; Dwell time; Ball diameter; Conversion; Limits |
| Hardness | Resolution 0.1 unit if HB < 100; else 1.0 unit |
| Standards Compliant | ISO 6506, ASTM E10, JIS |
| Test Load Type | Load Cell Closed-Loop Control System |
| Test Cycle | Automatic |
| Brinell Scales | HBW 10/3000, HBW 10/1500, HBW 10/1000, HBW 10/500, HBW 10/250, HBW 10/100, HBW 5/750, HBW5/250, HBW 2.5/187.5, HBW 2.5/62.5 |
| Indenters (optional) | Brinell Balls: 2.5, 5, 10mm |
| Load Duration | 2 – 99 sec |
| Specimen Accommodation | Vertical space 11in (280mm) Horizontal space (from center-line) 5in (130 mm) External surfaces roughly grinded, Ra < 21.6 μm |
| Cylindrical Surfaces | Down to 0.1in (3mm) diameter |
| Power | 100 – 240VAC, 60/50Hz |
| Optics (optional) | External measuring microscope; mechanical 20x, 40x or 60x, digital King Scan IV PC based measurement system |
