VJ Electronix – Summit 750i
The cost-effective and high performance solution to your rework needs. The Summit 750i is capable of handling boards up to 18″x22” and components as small as 0201. Built with easy-to-use 1-2-3-GO software, operation of this rework system is simple and intuitive. Efficient convection heating provides high thermal throughput, uniformity, and a repeatable rework process. Proprietary software provides product traceability, profile analysis, and sharing of profiles between VJE systems.
Technical Specification
| Placement | 0.002” (50µ) mean + 3o |

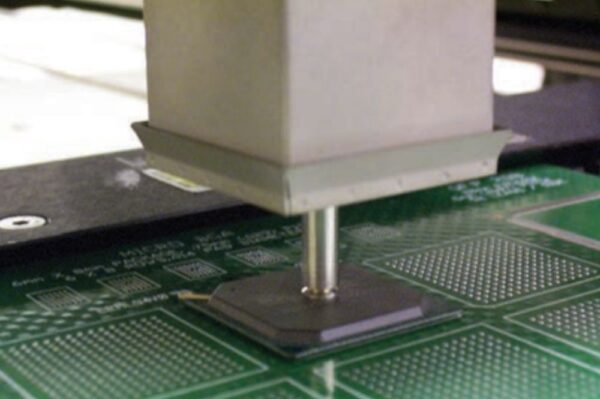

| Top Heater | 1.6kW Focused Convection |
| Bottom Heater | 4.0kW Convection Plenum |
| Field of View | 2.0” (50mm) Square |

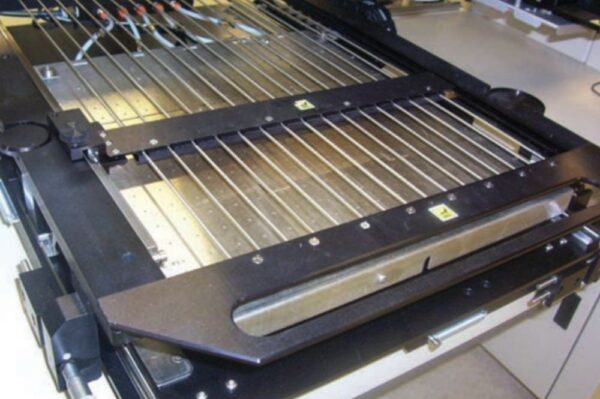

| Max. Board Size | 18”X22” (455mm X 560mm) |
| Min. Component Size | 0.100” (2.5mm) |
| Compliance | CE mark |
| For further details, please refer to enclosed brochure. |
Key Features
- Easy-To-Use Auto Profiling Software
- Simple Component-to-Site Alignment
- Repeatable Thermal Performance
- MES Interface
- Available Tooling for Any Surface Mount Component
Key Industries
- Semiconductor, Solar & Electronics
