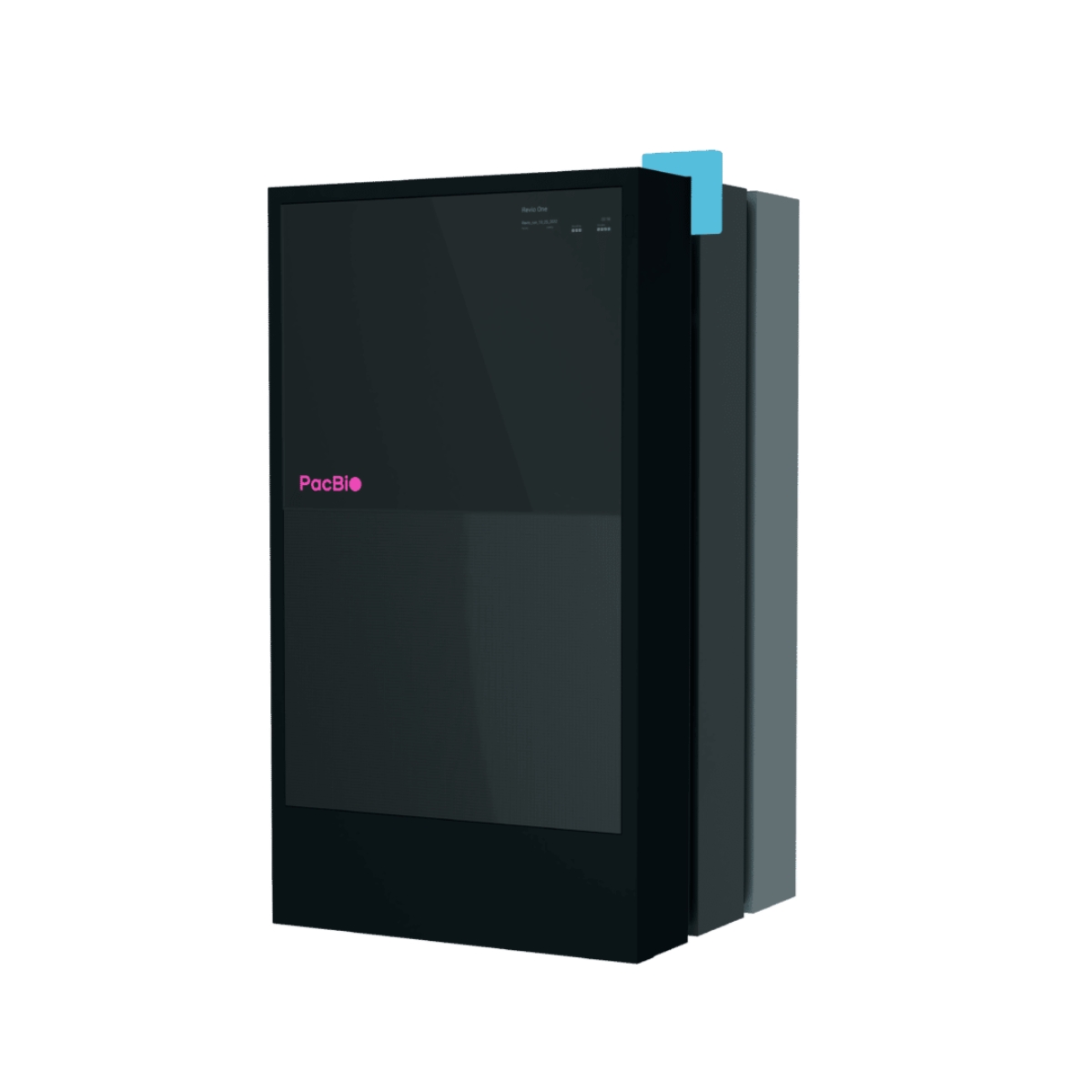

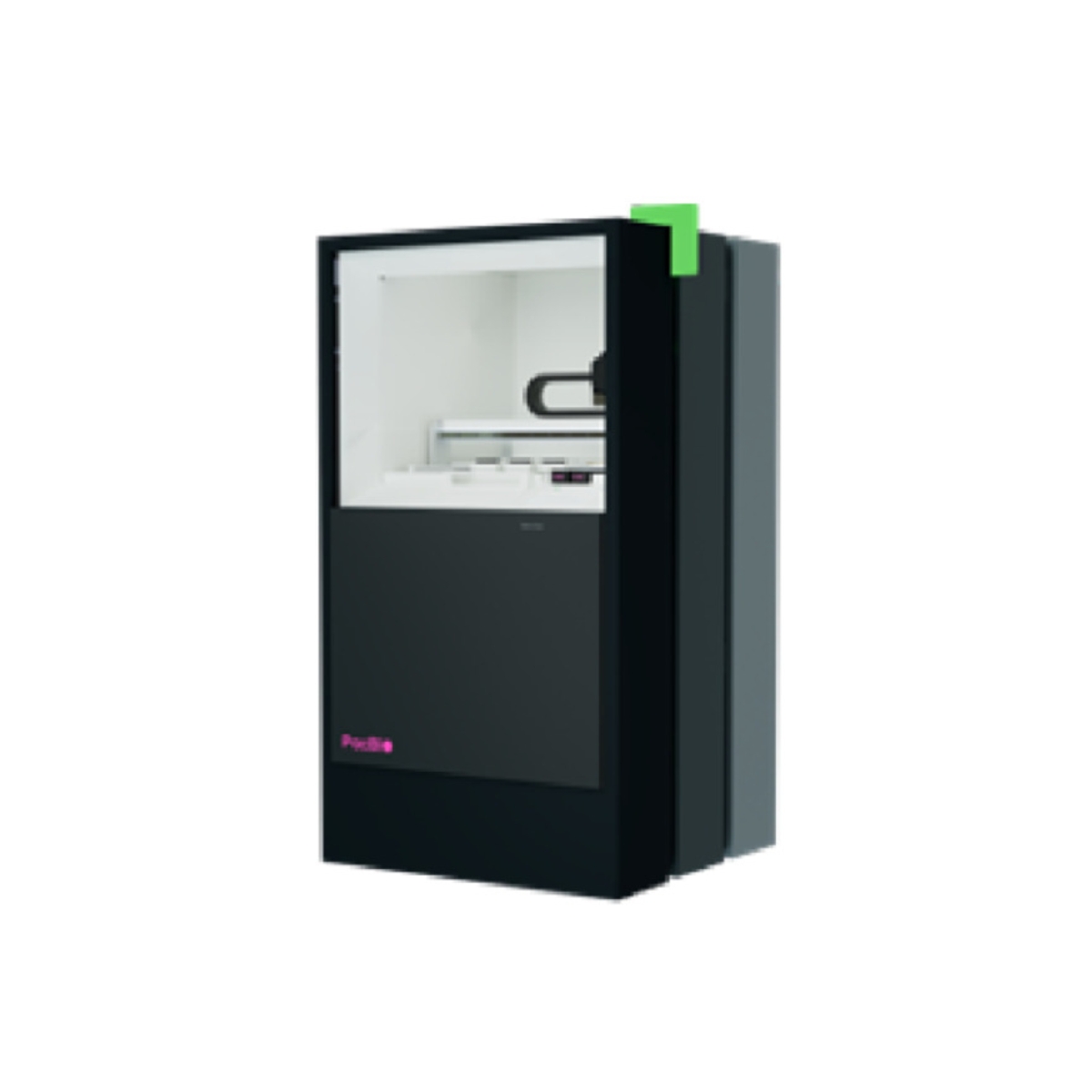

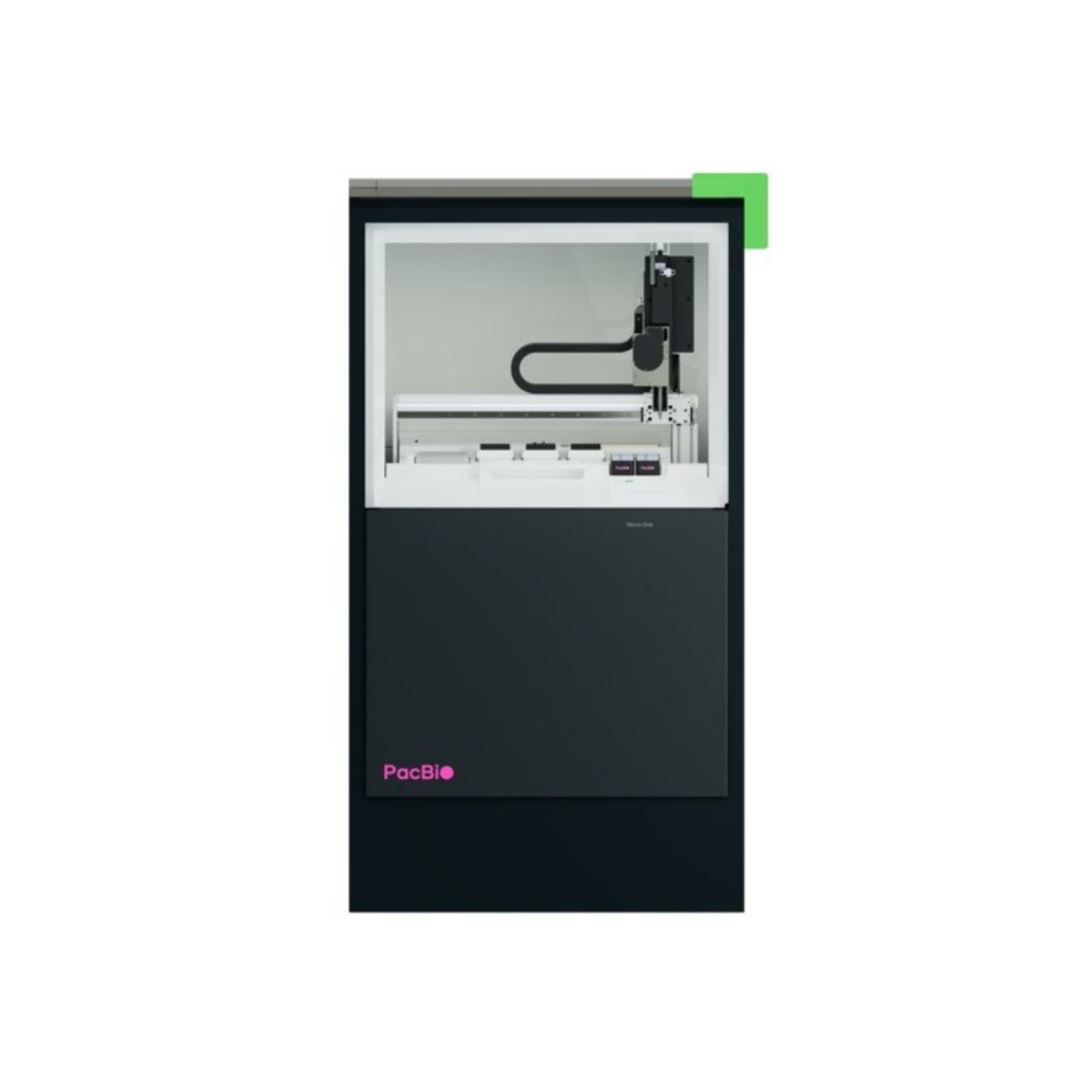

PacBio – Long-read Sequencing – Revio System
The Long-read Sequencing – Revio System adds affordability, high throughput, and ease of use to a foundation of long reads, exceptional accuracy, and direct methylation detection.
The Long-read Sequencing – Revio System empowers HiFi sequencing. It adds affordability, high throughput, and ease of use to a foundation of long reads, exceptional accuracy, and direct methylation detection.
Revio features advanced sequencing consumables, robotics, and massive compute power to deliver accurate long reads with methylation information directly from the sequencer in every run. Free yourself to discover more with a complete view of genomes, epigenomes, and transcriptomes on the Revio system.
Technical Specifications
| Temperature | 19–25°C (66–77°F) |
| Humidity | 20–80% relative humidity, non-condensing |
|---|---|
| Ventilation | 13,000 BTU/hr (3,800 W) |
| Dimension (W x D x H) | 92.7 cm (36.5 in) × 91.4 cm (36.0 in) × 174.5 cm (68.7 in) |
| Weight | 465 kg (1,025 lb) |
| Floor Space | 243.8 cm (96.0 in) × 138.5 cm (54.5 in) |
| Power requirements | 200–240 VAC at 50-60 Hz, max 5 kVA/4.8 kW/24A |
| Network connection | 1 GbE or 10 GbE, copper |
| Output file format | hifi_reads.bam, ≈55 GB each, up to 72 TB per year |
Key Features
Unleash the Power of HiFi Sequencing
Brand
PacBio offers revolutionary sequencing technologies that combine the completeness of long reads with the accuracy of short reads to provide the most comprehensive view of genomes, transcriptomes, and epigenomes.
