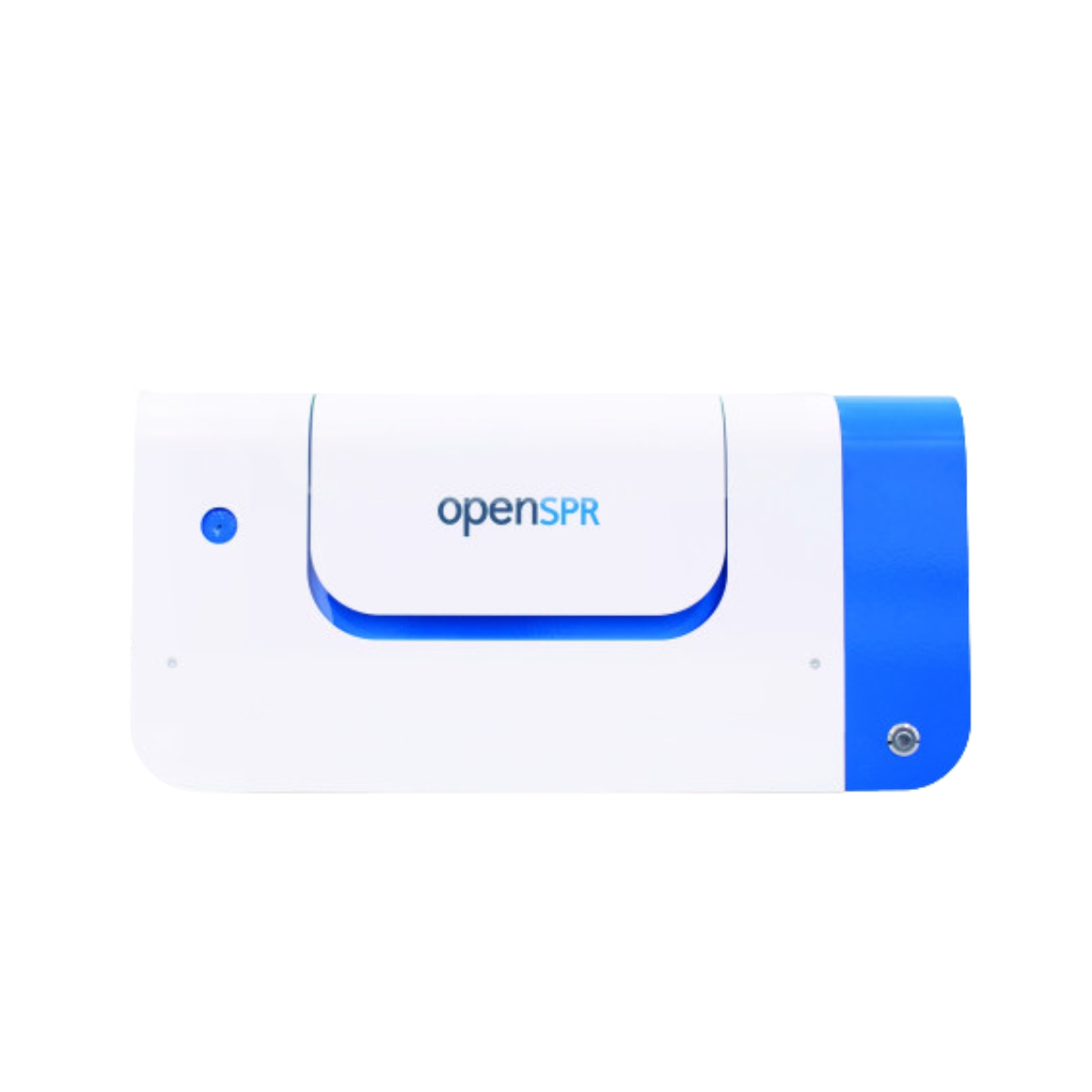

Nicoya – OpenSPR Instrument
OpenSPR is the world’s only benchtop surface plasmon resonance (SPR) instrument. It provides high quality, label-free interaction analysis for a fraction of the cost of existing solutions. Our unique nano-structured sensor surface uses localized SPR (LSPR) to deliver repeatable, highly sensitive kinetic data.
OpenSPR-XT is built with our cutting-edge and affordable nanotechnology biosensor platform. It has been seamlessly integrated with our robust autosampler system to allow for fully automated, 24/7 operation.
Compatible With
- Proteins
- Lipids
- Carbohydrates
- Antibodies
- Nucleic acids
- Small molecules
- Cells
- Viruses
- Nanoparticles & more
Applications
- Kinetics/affinity characterization
- Competition assays
- Target identification
- Epitope mapping
- Screening
- Yes/No binding
- Concentration
Available Models
| Performance | |
|---|---|
| Association rate (kon) | 1×103–1×107 1/M*s |
| Dissociation rate (koff) | 0.1–1×10-5 1/s |
| Affinity range (KD) | mM-pM |
| Hardware | |
| Number of channels | 2 |
| Flow rate | 5–200 μL/min |
| Injection | Semi-Automated |
| Injection volume | 5–100 μL |
| Autosampler | Optional upgrade to OpenSPR-XT |
| Temperature range | 4°C-40°C (max 10°C < ambient) |
| Temperature precision | +/- 0.25°C |
| Buffer switching | 3 ports available, automated switching |
| Instrument size | 46 x 34 x 21 cm |
| Weight | 42 lbs |
| File output | CSV, Tracedrawer |
Obtain publication-quality binding kinetics & affinity data on your benchtop.
| Performance | |
|---|---|
| Association rate (kon) | 1×103–1×107 1/M*s |
| Dissociation rate (koff) | 0.1–1×10-5 1/s |
| Affinity range (KD) | mM-pM |
| Hardware | |
| Number of channels | 2 |
| Flow rate | 5–200 μL/min |
| Injection | Automated |
| Injection volume | 5–100 μL |
| Sample capacity | 2x 96 well plates, 2/10 mL vials |
| Sample temperature | Cooled from 20°C-4°C |
| Unattended run time | 24 hours |
| Temperature range | 4°C-40°C (max 10°C < ambient) |
| Temperature precision | +/- 0.25°C |
| Buffer switching | 3 ports available, automated switching |
| Instrument size | 78 x 55 x 53 cm |
| File output | CSV, Tracedrawer |
Maximize your productivity with fully automated, 24/7 operation of our benchtop SPR.
Featured Product
OpenSPR for biotechnology. Get started on your experiments in a matter of hours.
OpenSPR is user-friendly and has versatile applicability. In smaller companies, the OpenSPR allows researchers to finish off their full experimental workflows at a low cost. In larger companies, the OpenSPR is easily integrated alongside their other assays.
OpenSPR is ideal for:
- Lead Optimization
- Quality control
- Drug discovery
- Validation
- Feasibility
Brand
Nicoya is a Canadian biotechnology company dedicated to improving human life by helping scientists succeed. Established in 2012, Nicoya was founded by Ryan Denomme in his relentless pursuit to use nanotechnology to increase the affordability and ease of use of scientific instruments. In less than 3 years, Nicoya has grown rapidly from 14 to 70+ employees who have extensive experience working at the forefront of nanotechnology and biotechnology sectors. Nicoya develops innovative and accessible biosensor technology for in-depth characterization of biomolecular interactions.
