Malvern Panalytical – Particle Characterization, Particle Shape – Morphologi Range
Automated imaging for advanced particle characterization

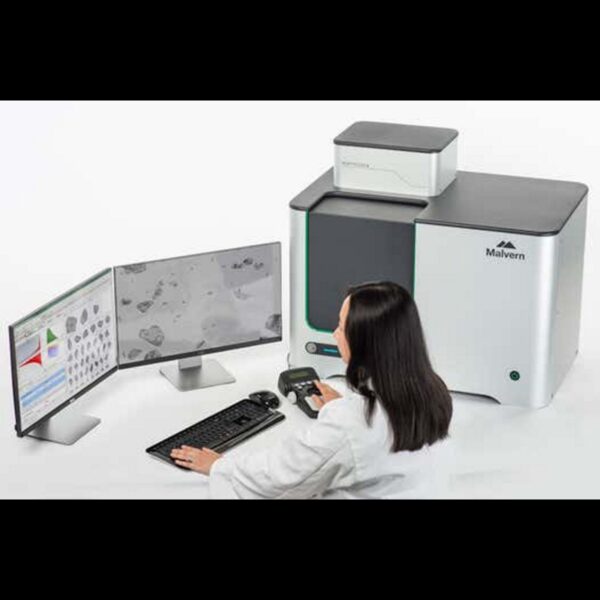

Morphological imaging is fast becoming an essential technology in the laboratory toolkit for particle characterization. The Morphologi 4 is a fully automated static image analysis system which provides a complete detailed description of the morphological properties of particulate materials. The Morphologi 4-ID combines the same automated static image analysis with Raman spectroscopy in a single, integrated platform, providing component-specific morphological descriptions of chemical species within a blend.DKSH is the exclusive distributor in Cambodia, Indonesia, Laos, Malaysia, Myanmar, Philippines, Singapore, Taiwan, Thailand and Vietnam.
Technical Specifications
| Morphologi 4-ID | Morphologi 4 | |
|---|---|---|
| Measurement type | ||
| Particle size | ✓ | ✓ |
| Particle shape | ✓ | ✓ |
| Chemical identification | ✓ | |
| Contaminant detection and analysis | ✓ | |
| Particle size range | 0.5µm – 1300µm | 0.5µm – 1300µm |
| Technology | ||
| Image analysis | ✓ | ✓ |
| Morphologically Directed Raman Spectroscopy (MDRS) | ✓ |
Available Models
Technical Specifications
| Technology | Static automated imaging |
| Particle size parameters | Circle equivalent (CE) diameter, length, width, perimeter, area, maximum distance, sphere equivalent (SE) volume, fiber total length, fiber width |
|---|---|
| Particle shape parameters | Aspect ratio, circularity, convexity, elongation, high sensitivity (HS) circularity, solidity, fiber elongation, fiber straightness |
| Particle transparency parameters | Intensity mean, intensity standard deviation |
| Integrated Sample Dispersion Unit | For fully automated dispersion and measurement of dry powders. Manual or SOP control of dispersion pressure, injection time and settling time |
| Detector | 18 MP; 4912 x 3684 pixel color CCD array; pixel size 1.25 μm x 1.25 μm |
| Optical system | Nikon CFI 60 brightfield / darkfield system |
| Dimensions (W, D, H) | 810 x 520 x 685 mm with carry handles: 1100 x 520 x 685 mm |
Rapid, automated particle size and particle shape analysis
Morphologi 4 provides detailed morphological descriptions of particulate samples through static image analysis, enabling a greater understanding of both sample and process. It can equally be used as an R&D tool to investigate challenging applications and in automated QC analysis where generation of robust, user-independent results and validation are required.
Read more on the website of our partner
Technical Specifications
| Technology | Static automated imaging |
| Particle size parameters | Circle equivalent (CE) diameter, length, width, perimeter, area, maximum distance, sphere equivalent (SE) volume, fiber total length, fiber width |
|---|---|
| Particle shape parameters | Aspect ratio, circularity, convexity, elongation, high sensitivity (HS) circularity, solidity, fiber elongation, fiber straightness |
| Particle transparency parameters | Intensity mean, intensity standard deviation |
| Integrated Sample Dispersion Unit | For fully automated dispersion and measurement of dry powders. Manual or SOP control of dispersion pressure, injection time and settling time |
| Detector | 18 MP; 4912 x 3684 pixel color CCD array; pixel size 1.25 μm x 1.25 μm |
| Optical system | Nikon CFI 60 brightfield / darkfield system |
| Dimensions (W, D, H) | 810 x 520 x 685 mm with carry handles: 1100 x 520 x 685 mm |
Rapid, automated, component-specific particle characterization in a single, integrated platform
Morphologi 4-ID delivers detailed component-specific morphological descriptions of particulate blends through Morphologically-Directed Raman Spectroscopy (MDRS). This combines automated particle imaging with Raman spectroscopy in a single, integrated platform, providing the power to unlock complex particle characterization problems.
Read more on the website of our partner
Key Features
- Automated SOP control for unattended operation and reproducible results, boosting productivity
- Excellent microscope images, accurate characterization
- Versatile sample presentation accessories for measuring suspended and filtered samples
- Advanced manual microscope control mode provides increased value as a shared laboratory resource
- Rapid automatic particle counting on membrane filters
- Powerful and intuitive software interface for easy visual and statistical interpretation of data
Morphologi 4-ID in action
Morphologically-Directed Raman Spectroscopy (MDRS) combines automated imaging and chemical identification for advanced particle characterization. This provides rapid, automated component-specific morphological information to help solve your formulation and deformulation challenges, optimize material properties and create confidence throughout development and manufacturing.
Key Industries
- Biopharmaceutical and Biotechnology
- Electronics
- Mining & Minerals
- Pharmaceutical
- Powders & Pigments / Coating
- Semiconductor, Solar & Electronics
