Malvern Panalytical – Particle Characterization – Parsum Range
Inline probe that uses spatial filter velocimetry for particle size measurement
Parsum Probes use Spatial Filter Velocimetry to deliver in situ, real-time size and velocity measurements for solid particles suspended in a pneumatic or gravity flow gas stream. Robust, dustproof and waterproof they measure particles in the size range 50-6000 µm with velocities from 0.01-50 m/s and are suitable for any industrial environment.Technical Specifications
| Measurement | Particle size |
| Particle size range | 50 µm to 6000 µm |
|---|---|
| Technology | Spatial filter velocimetry |
Available Models
Technical Specifications
| Size measurement principle | Spatial filter velocimetry |
|---|---|
| Velocity measurement range | 0.01 – 50 m/s |
| Velocity measurement principle | Spatial filter velocimetry |
| Light source wavelength | 670 nm |
| Operating temperature | 10°C -100°C |
| Operating Humidity | 35% – 80% |
| Enclosure rating | IP65 |

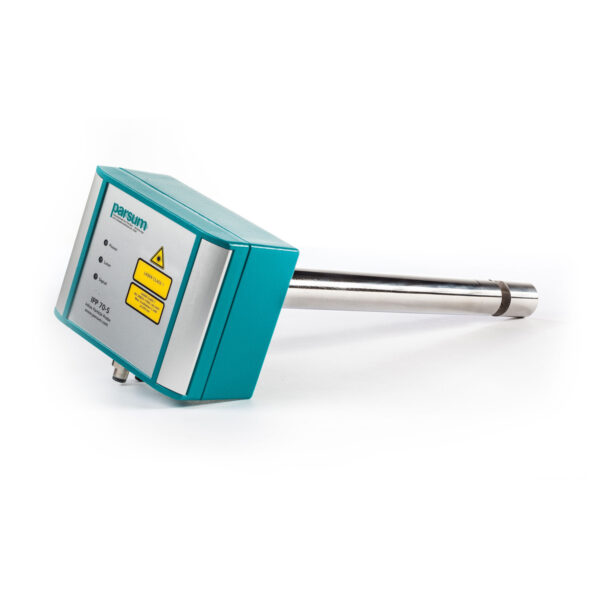

Parsum IPP 70-S – A standard instrument option use in chemical, food and pharmaceutical industries for endpoint detection
Compact, lightweight and easy to install, the Parsum IPP-70-S probe delivers in situ, real-time size and velocity measurements for solid particles up to 6000 µm in size. Dustproof and waterproof, and requiring no sampling or calibration, it provides continuous process monitoring at high and fluctuating solids loadings, even for abrasive, greasy or sticky particles.
Technical Specifications
| Velocity measurement range | 0.01 – 50 m/s |
|---|---|
| Concentration range | up to 30 volume % |
| Dimensions | 101 × 85 × 65 mm |
| Probe length | 282 mm |
| Probe diameter | 25 mm |
| Operating temperature | up to 100°C |
| Temperature range | 10 °C – 60 °C |
| Operating pressure | up to 15 bar |
| Operating humidity | 35% – 80% |
| Enclosure rating | IP65 |
| Explosion protection | ATEX certified for Zone 0/20 |
Parsum IPP 80-P – An intrinsically safe inline particle sizing probe for real-time measurement in pharmaceutical and food applications
Specifically designed for the pharmaceutical and food industries, the Parsum IPP80 is an intrinsically safe probe delivering real-time particle size and particle velocity measurements for solid particles in the range from 50µm up to 6mm in size. Its simple, dustproof and waterproof probe design enables direct monitoring of fluidized bed and high shear mixing and granulation processes.
Technical Specifications
| Temperature range | 10 °C – 60 °C |
|---|---|
| Operating humidity | 35% – 80% |
| Enclosure rating | IP65 |
| Light source wavelength | 670 nm |
| Laser safety | Class 1 |

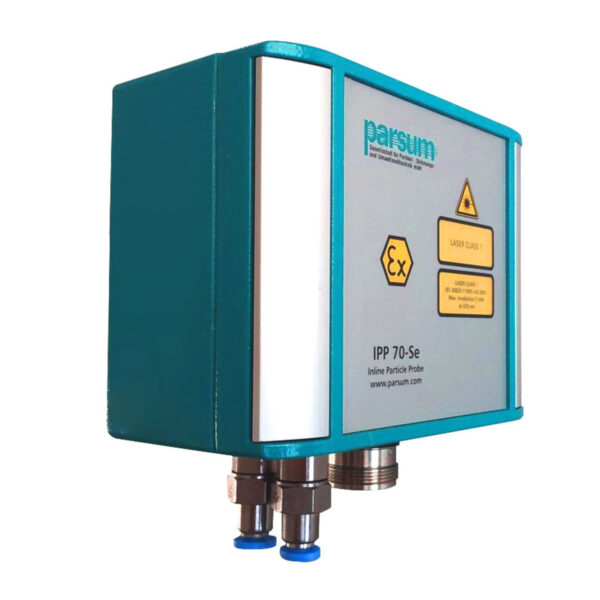

Parsum IPP 70-SE – Used in the chemical, food and pharmaceutical industries for endpoint detection, process control/optimization and real-time QC
Key Features
- Real-time measurement: Delivers continuous data for improved process control and efficiency.
- Patented technology: Uses spatial filter technique to accurately measure particle size and velocity.
- Wide range of probes: Various models for different applications, including pharmaceutical, food, and explosive environments.
- Flexible software integration: Includes ParsumView for data security (FDA 21CFR Part 11 compliance) and ExcelConnect for real-time data plotting.
- ATEX certified models: Safe for use in explosive atmospheres (Zone 0/20).
- Customizable solutions: Probes can be tailored in length for larger process spaces.
Parsum In-Line Particle Size Analyser Using Spatial Filter Velocimetry
Measure particle size and distribution with the Parsum probe IPP70 in a granulator during the process, using spatial filter velocimetry. Therefore the size distribution of the particles is tracked through the entire batch. Whether coating or agglomeration, grinding or spray-drying, the process remains under control, in real time!
Key Industries
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Environmental
- Machinery & Manufacturing
- Mining & Minerals
- Oil & Gas
- Pharmaceutical
