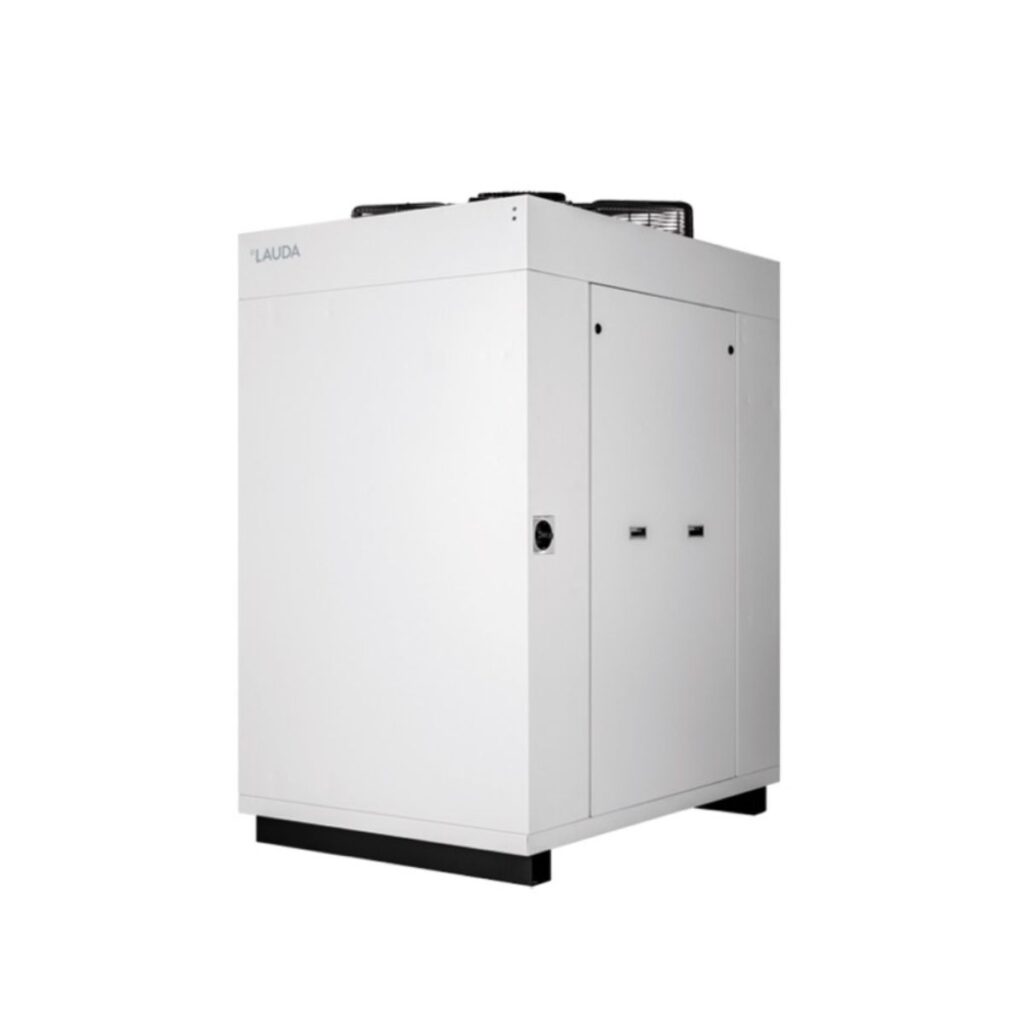

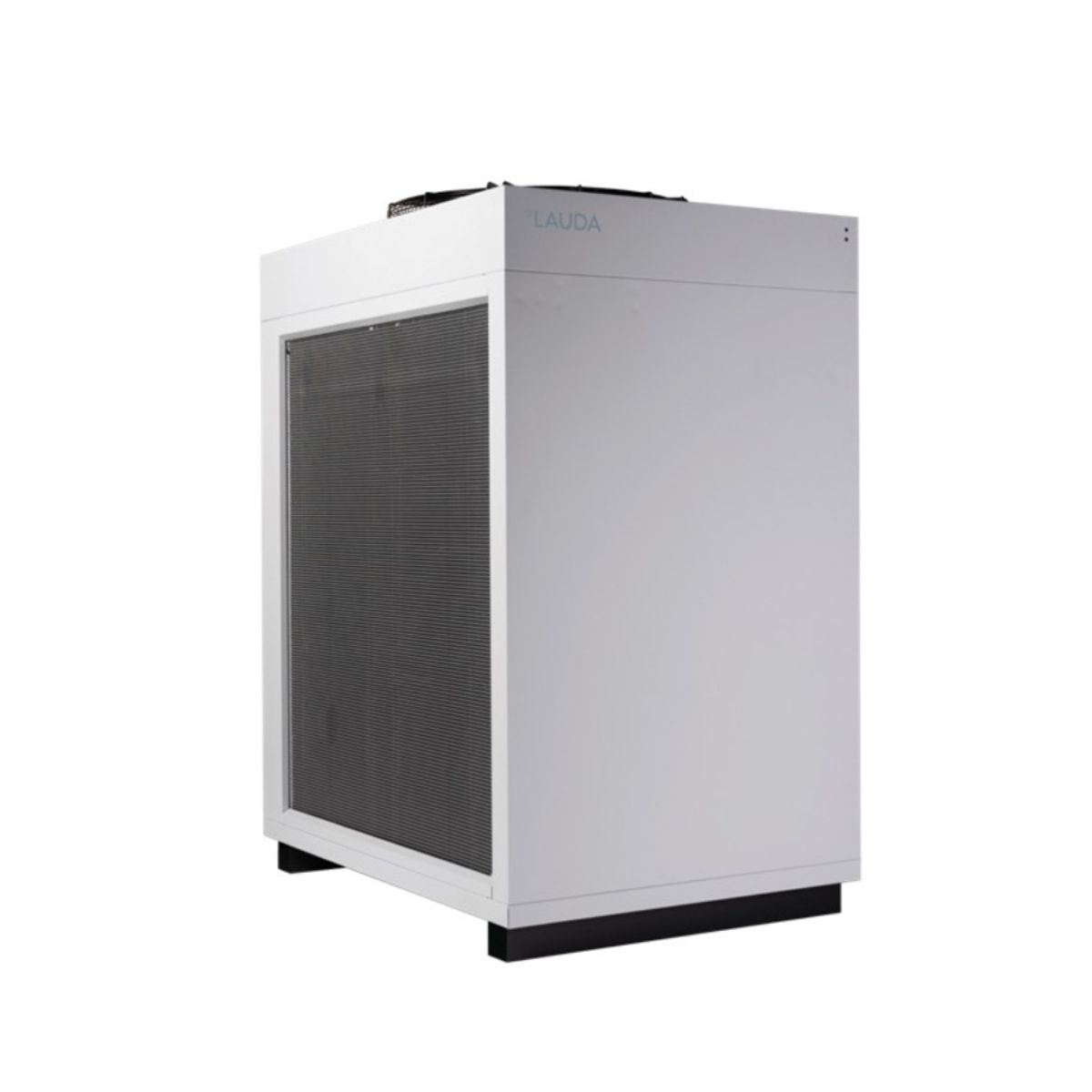

Lauda – Ultracool Process Circulation Chiller
Process circulation chillers for industrial applications
LAUDA Ultracool chillers provide reliable temperature control and ensure secure processing. The models are plug & operate systems equipped with a cold water tank, a centrifugal pump and an internal bypass. All chillers are already equiped with an antifreeze protection thermostat to prevent freezing of the heat exchanger. Integrated pressure switches protect the circuit against pressure levels that drift too high or too low. Housings made from galvanized steel and externally coated with epoxy resin protects against corrosion even under aggressive ambient conditions. All models are suitable for outdoor installation.
Technical Specifications
| Working temperature | -5…25°C |
| Volume of water reservoir | 19…200 L |
|---|---|
| Temperature stability | up to 265 kW |
| Cooling output | 0.25…1.2 kW |
| Pump pressure max. | 3.40…4.70 bar |
| Pump flow max. | 42…230 L/min |
Available Models
| Technical Specifications | |
| Working temperature range | -5…25°C |
| Temperature stability | 2 ±K |
| Volume of water reservoir | 19 L |
| Cooling output at 20°C | up to 4.9 kW |
| Pump pressure max. | 3.40 bar |
| Pump flow max. | 42 L/min |
The three UC Mini chillers are available with cooling outputs from 2.1 up to 4.9 kW. The models work with a hermetic compressor and a centrifugal pump. The pump is noise reduced and works with a very flat flow rate/pressure characteristic. This allows the user to easily adjust the water flow without jeopardizing the pressure.

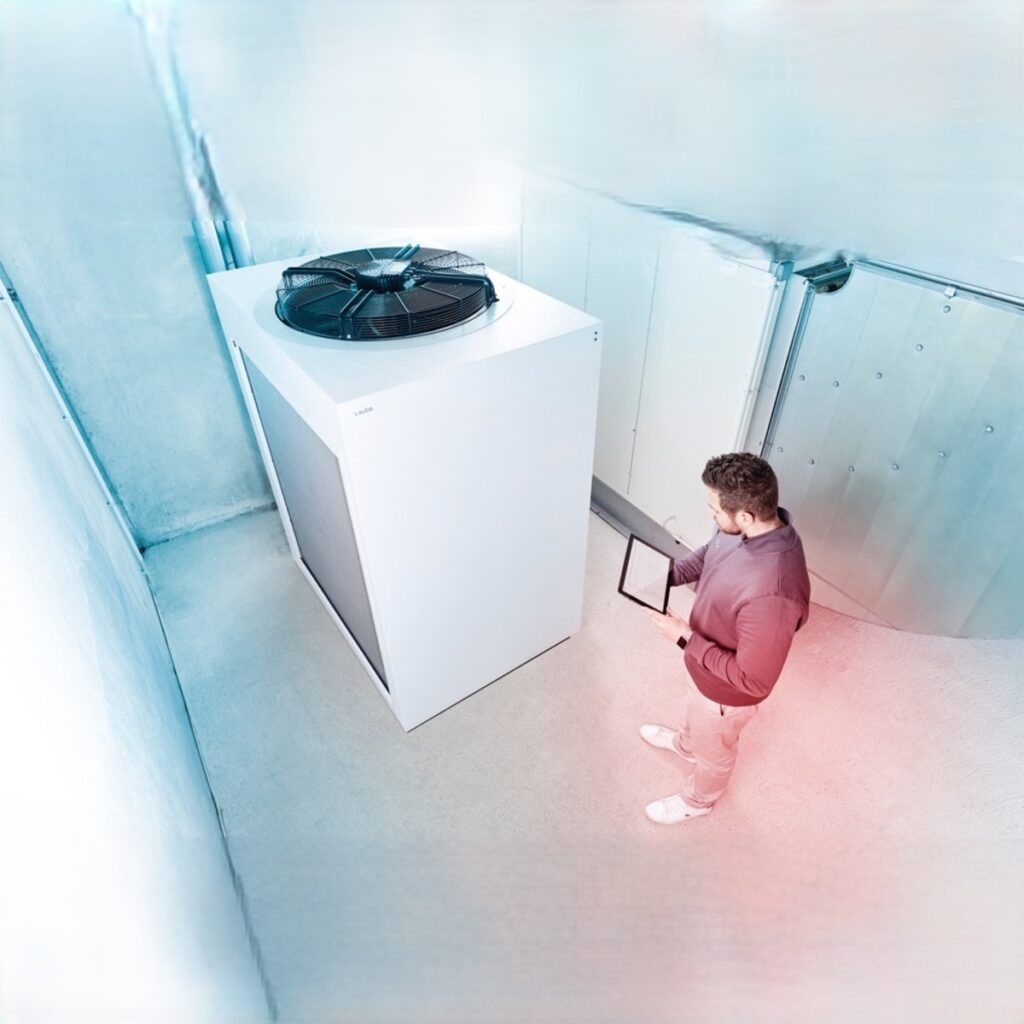

Compared to the previous models the device dimensions were significantly reduced. Due to the optimized geometry of the devices an easy access to the components that need to be serviced regularly is provided. The temperature range in which the coolers can be used now covers an extended temperature from 0 up to 50°C ambient. Additionally outdoor installation of these circulation chillers is available as an option and allows the use at ambient temperatures down to -15°C.
| Technical Specifications | |
| Working temperature range | -5…25°C |
| Temperature stability | 2 ±K |
| Volume of water reservoir | 100 L |
| Cooling output at 20°C | up to 26.3 kW |
| Pump pressure max. | 4.20 bar |
| Pump flow max. | 130 L/min |
The three UC Mini chillers are available with cooling outputs from 2.1 up to 4.9 kW. The models work with a hermetic compressor and a centrifugal pump. The pump is noise reduced and works with a very flat flow rate/pressure characteristic. This allows the user to easily adjust the water flow without jeopardizing the pressure.
Compared to the previous models the device dimensions were significantly reduced. Due to the optimized geometry of the devices an easy access to the components that need to be serviced regularly is provided. The temperature range in which the coolers can be used now covers an extended temperature from 0 up to 50°C ambient. Additionally outdoor installation of these circulation chillers is available as an option and allows the use at ambient temperatures down to -15°C.
| Technical Specifications | |
| Working temperature range | -5…25°C |
| Temperature stability | 2 ±K |
| Volume of water reservoir | 200 L |
| Cooling output at 20°C | up to 265 kW |
| Pump pressure max. | 4.20 bar |
| Pump flow max. | 230 L/min |
The three UC Mini chillers are available with cooling outputs from 2.1 up to 4.9 kW. The models work with a hermetic compressor and a centrifugal pump. The pump is noise reduced and works with a very flat flow rate/pressure characteristic. This allows the user to easily adjust the water flow without jeopardizing the pressure.
Compared to the previous models the device dimensions were significantly reduced. Due to the optimized geometry of the devices an easy access to the components that need to be serviced regularly is provided. The temperature range in which the coolers can be used now covers an extended temperature from 0 up to 50°C ambient. Additionally outdoor installation of these circulation chillers is available as an option and allows the use at ambient temperatures down to -15°C.
