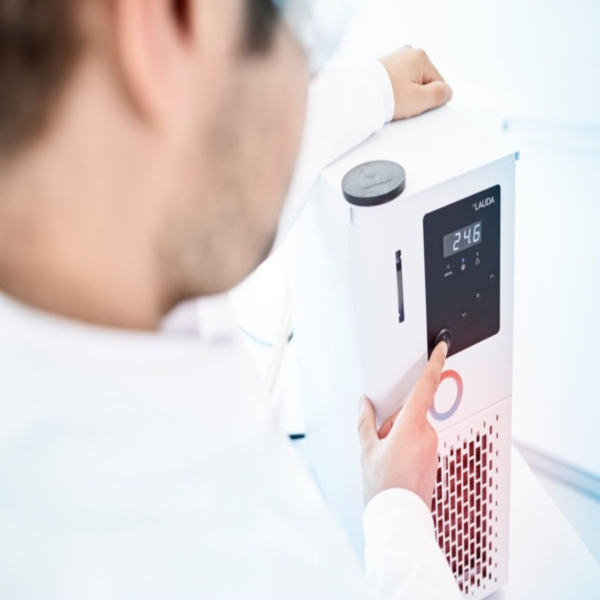

Lauda – Microcool Circulation Chillers
Circulation Chillers for Reliable Continuous Operation in the Laboratory and in Research from -10 up to 40°C
LAUDA Microcool has been designed as a circulation chiller line with five compact models and cooling capacities from 0.25 to 1.2 kW. The user interface with large LED display and the membrane keyboard make the devices easy to use. An RS-232 interface and alarm contact are integarated as standard. What is unusual in this price category of circulation chillers is the high-quality block pump with magnetic coupling. The magnetic coupling of pump and electric motor exclude sealing problems on the pump shaft.
LAUDA Microcool circulation chillers are used whenever heat needs to be dissipated reliably and quickly, e.g. in laboratories for rotary evaporators, distillation systems or analytical devices.
Excellent price-performance ratio, compact design and simple to use
The compact MC 250 and MC 350 makes them ideal for being positioned on the benchtop. The circulation chillers are equipped with a magnetic coupling pump. This supplies a pump pressure of 0.35 bar and a maximum pump flow of 16 L/min.
The 600 W and 1200 W cooling capacity models are floor standing instruments designed to fit underneath the lab bench. They are equipped with a pressure gauge to display the pressure and casters which can be controlled and locked. Pump pressure can be adjusted via the integrated by-pass. At 1200 W, the most powerful device is also available in a water-cooled version as the MC 1200 W.
Technical Specifications
| Working temperature | -10…40°C |
| Temperature stability | 0.5 ±K |
|---|---|
| Cooling output | 0.25…1.2 kW |
| Pump pressure max. | 0.35…1.3 bar |
| Pump flow max. | 16…35 L/min |
Available Models
Technical Specifications
| Working temperature range | -10…40°C |
| Temperature stability | 0.5 ±K |
| Cooling output at 20°C | 0.25 kW |
| Pump pressure max. | 0.35 bar |
| Pump flow max. | 16 L/min |
Technical Specifications
| Working temperature range | -10…40°C |
| Temperature stability | 0.5 ±K |
| Cooling output at 20°C | 0.35 kW |
| Pump pressure max. | 0.35 bar |
| Pump flow max. | 16 L/min |
Technical Specifications
| Working temperature range | -10…40°C |
| Temperature stability | 0.5 ±K |
|---|---|
| Cooling output at 20°C | 0.6 kW |
| Pump pressure max. | 1.3 bar |
| Pump flow max. | 35 L/min |
Technical Specifications
| Working temperature range | -10…40°C |
| Temperature stability | 0.5 ±K |
| Cooling output at 20°C | 1.2 kW |
| Pump pressure max. | 1.3 bar |
| Pump flow max. | 35 L/min |
Technical Specifications
| Working temperature range | -10…40°C |
| Temperature stability | 0.5 ±K |
| Cooling output at 20°C | 1.2 kW |
| Pump pressure max. | 1.3 bar |
| Pump flow max. | 35 L/min |
Key Features
- Five device types with a range of cooling capacities from 250 W to 1200 W to cover majority of basic laboratory uses.
- User interface with large LED display and membrane keyboard for simple and intuitive operation
- Auto-start timer and auto-shutdown function allows timer-based activation and deactivation
- Illuminated window enables quick optical detection of heat transfer liquid level
- Block pump with magnetic coupling of pump and electric motor to prevent sealing problems at the pump shaft
- Integrated overflow connection to control filling of devices
- RS-232 interface and alarm contact standard allows system integration into processes without additional costs
- Compact design saves valuable laboratory space
- Integrated filling funnel on top of the device allows simple and save
- Easily removed front grid eases cleaning of condenser.
