KD Scientific – Evaporators and Concentrators

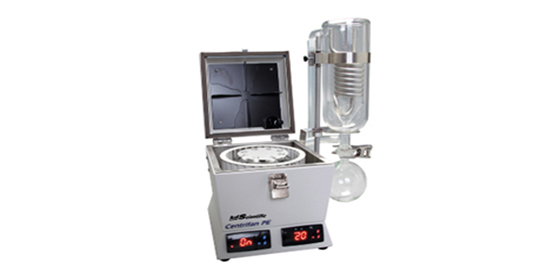

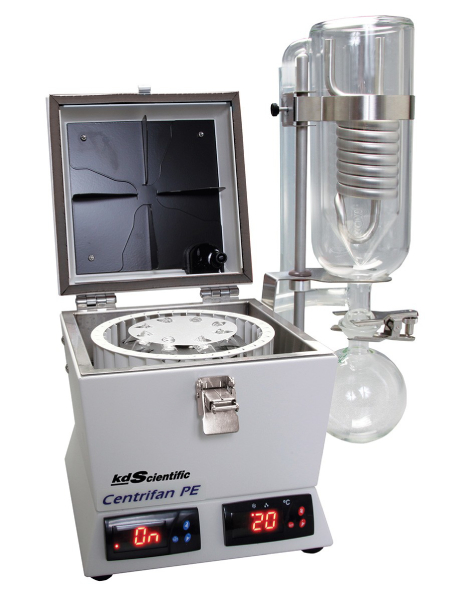

The KD Scientific Centrifan™ PE is a convenient, compact evaporator/concentrator for research, pharmaceutical, and biotech labs working with samples such as DNA, RNA, and protein. Proprietary self-generated blowdown technology eliminates the potential problems with common evaporation systems such as vacuum centrifuges, rotary evaporators, nitrogen blow-down, and freeze dryers.
Synthetic and medicinal chemists will save time because the Centrifan™ PE dries samples without the monitoring required by a rotorvap. The system also works well for processing fractions collected from flash liquid chromatography. Pharmaceutical and university labs working with radioactive and other highly toxic compounds will appreciate the advantage of the green chemistry design.
Technical Specification
| Rotor Capacities | 6 x 20 mL Scintillation Vials 6 x 30 mL Scintillation Vials 4 x 40 mL Scintillation Vials 8 x 16 mm x 100 mm Test Tubes 8 x 1.6 mL Eppendorf Tubes 8 x 4 mL (1 Dram) Sample Vials 10 x 1.5 HPLC Vials |
| Temp Controller | Ambient to 55°C |
|---|---|
| Range | Ambient 2°C to 40°C |
| Temperature | Cold Finger Capacity 1 L non-freezing liquid plus dry ice nuggets |
| Power Requirements | 115/230 VAC 50-60 Hz 200 watts |
| Fuse Ratings | 3 A (115 V and 230 V) fast acting, 5mmx 20mm |
| Rotor Capacities | 6 x 20 mL Scintillation Vials |
| Weight | 12 lbs (5.5 kg) |
Available Models
KD Scientific – Evaporators and Concentrators
| Rotor Capacities | 6 x 20 mL Scintillation Vials 6 x 30 mL Scintillation Vials 4 x 40 mL Scintillation Vials 8 x 16 mm x 100 mm Test Tubes 8 x 1.6 mL Eppendorf Tubes 8 x 4 mL (1 Dram) Sample Vials 10 x 1.5 HPLC Vials | |
|---|---|---|
| Temp Controller | Ambient to 55°C | |
| Range | Ambient 2°C to 40°C | |
| Temperature | Cold Finger Capacity 1 L non-freezing liquid plus dry ice nuggets | |
| Power Requirements | 115/230 VAC 50-60 Hz 200 watts | |
| Fuse Ratings | 3 A (115 V and 230 V) fast acting, 5mmx 20mm | |
| Rotor Capacities | 6 x 20 mL Scintillation Vials | |
| Weight | 12 lbs (5.5 kg) | |
Simple, Reliable, Vacuum-Free, Safe for Samples and Users
The Centrifan™ PE Evaporator / Concentrator is a small volume evaporator that eliminates the problem of bumping using SBT (Self Blowdown Technology). SBT allows solvent drying using heated, circulating gas flow and NO VACUUM PUMP!
The Centrifan™ requires a rotor for operation. Rotors are not included. Please review the accesories tab below for rotor options.
Key Features
- Vacuum-Free – no bumping or splashing to risk sample purity and yield
- Centrifugal Evaporation – sample securely pressed in spinning containers
- Versatile – ideal for LC fractions, synthesis reactions, harsh inorganic chemistry, cold room operations, toxic compounds, radioisotopes
- Low Maintenance – no vacuum pump; no noise; simple unattended operation
- Temperature – programmable ambient to 55°C
- Off-Timer – programmable from minutes to hours
- Green Solvent Recovery – captured gas recirculates in a closed system; toxic materials are contained
- Easy-to-Use – close the lid to start
- Flexible – concentrate samples or evaporate to complete dryness, or collect distillate
- Compact – portable, minimal bench space
- Containers – use 20/30/40 mL scintillation vials, 1.6 mL Eppendorf tubes, 4 mL (1 dram) vials, or 16 mm x 100 mm test tubes
- Low Cost
Key Features
CENTRIFAN™ PE EVAPORATOR / CONCENTRATOR
Easy Operation Frees Your Time
- Just close the cover and walk away – no monitoring required.
- Dry samples directly in 20 ml scintillation and other common vials.
- No need to maintain a vacuum pump or use a large supply of blow-down gas.
- Move the portable unit near your experiment – it even operates on a lab cart.
- Set the required temperature (ambient to 55°C) and off-timer (minutes to hours).
Efficient Technology Delivers Reliable Results
- The low price Centrifan PE withstands years of lab work with virtually no maintenance.
- The self-generating blow-down technology protects samples from loss.
- Centrifugal force allows secure drying directly in convenient scintillation vials.
- High vapor recovery permits collection of the condensate as the final product.
Effective Process Eliminates Cross Contamination
- No vacuum pump means no cross contamination from solvent bumping.
- Radio labeled compounds dry safely.
- Residual solvent content in the sample can be reduced with inert dry gas.
- Compact unit fits in a hot cell to contain radioisotopes.
Environmental Design Saves Energy, Protects Your Health
- The unit captures toxic vapors and materials in a closed system.
- Quiet operation reduces noise pollution in the laboratory.
- Low power consumption saves energy.
