Hygiena® ATP Hygiene Monitoring System for Cleaning Verification

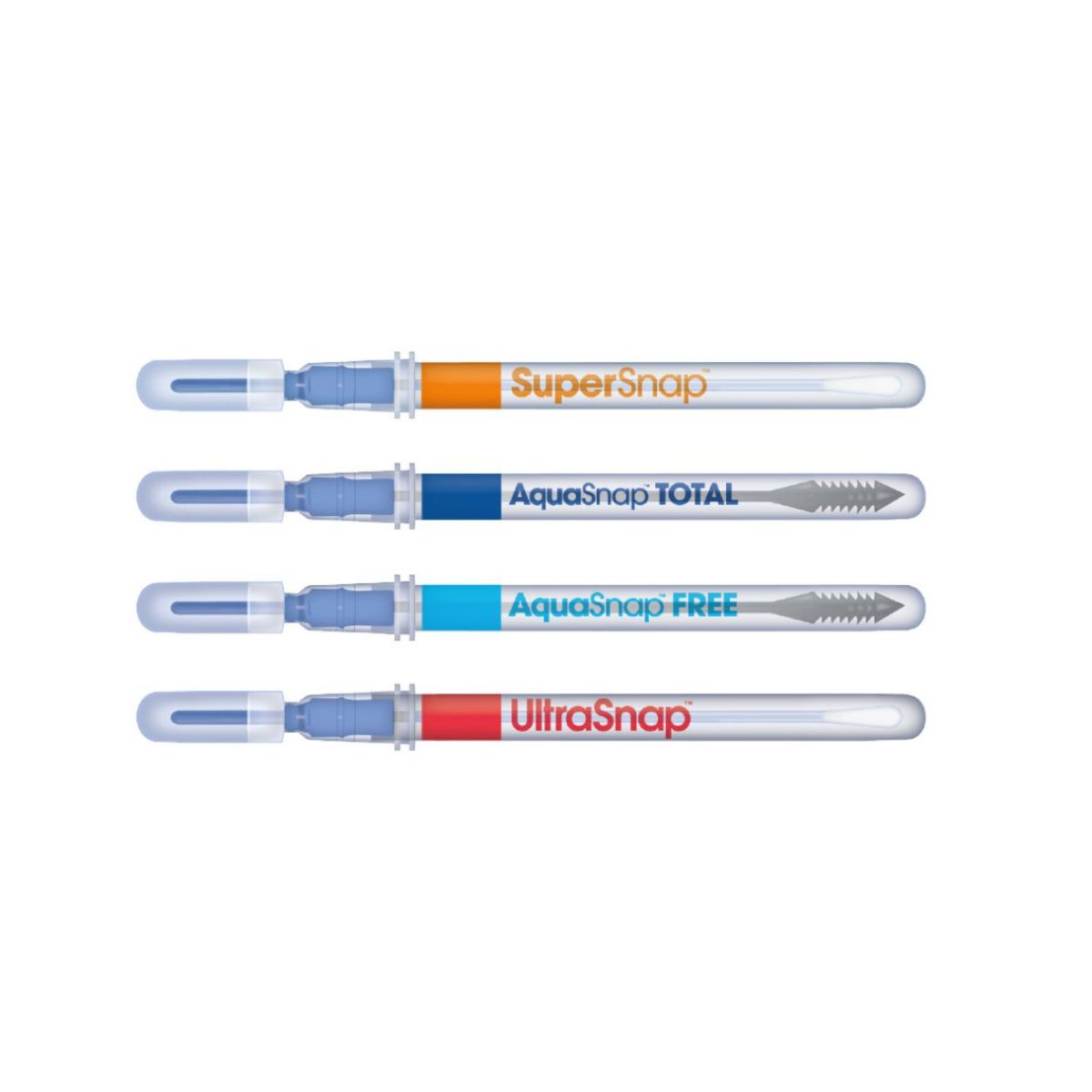

Hygiena’s line up covers every step: UltraSnap® and SuperSnap® swabs for surfaces, AquaSnap® tests for water, the EnSURE® Touch luminometer for instant readings, plus accessories that keep your system running shift after shift.

Inquire Now

Overview

Features

Specifications

Instantly confirm surface cleanliness with Hygiena ATP tests. Our bioluminescence-based solutions deliver on site hygiene testing results in minutes, supporting HACCP, FSMA, and GFSI programs in food and beverage facilities, and helping document cleaning performance in healthcare, hospitality, and pharmaceutical environments.

Key Features

Rapid Contamination Screening:
Same day microbial testing results, knowing microbial levels the same day of production means reduced costs and shortened release cycles
Patented Snap-Valve Design
Ensures all of collected sample is analyzed, All of sample stays inside device during activation- a simple thumb and forefinger snap- for safe, accurate detection
Reduces Costs
Rapid testing reduces material and holding costs, Rapid testing means shorter production hold times, reducing inventory holding costs
Complete Monitoring System
Devices, test devices and analysis software, A full ATP monitoring solution provides rapid, easily interpretable results with integrated software system
Compatible with EnSURE Touch
Collect data using EnSURE Touch and analyze in SureTrend, Single system to capture, quantitate, analyze and trend data allows optimization of your EM program
Works with Filtered Samples
Analyze filterable liquids, Removes interfering substances for accurate detection of contaminating organisms

Available Models

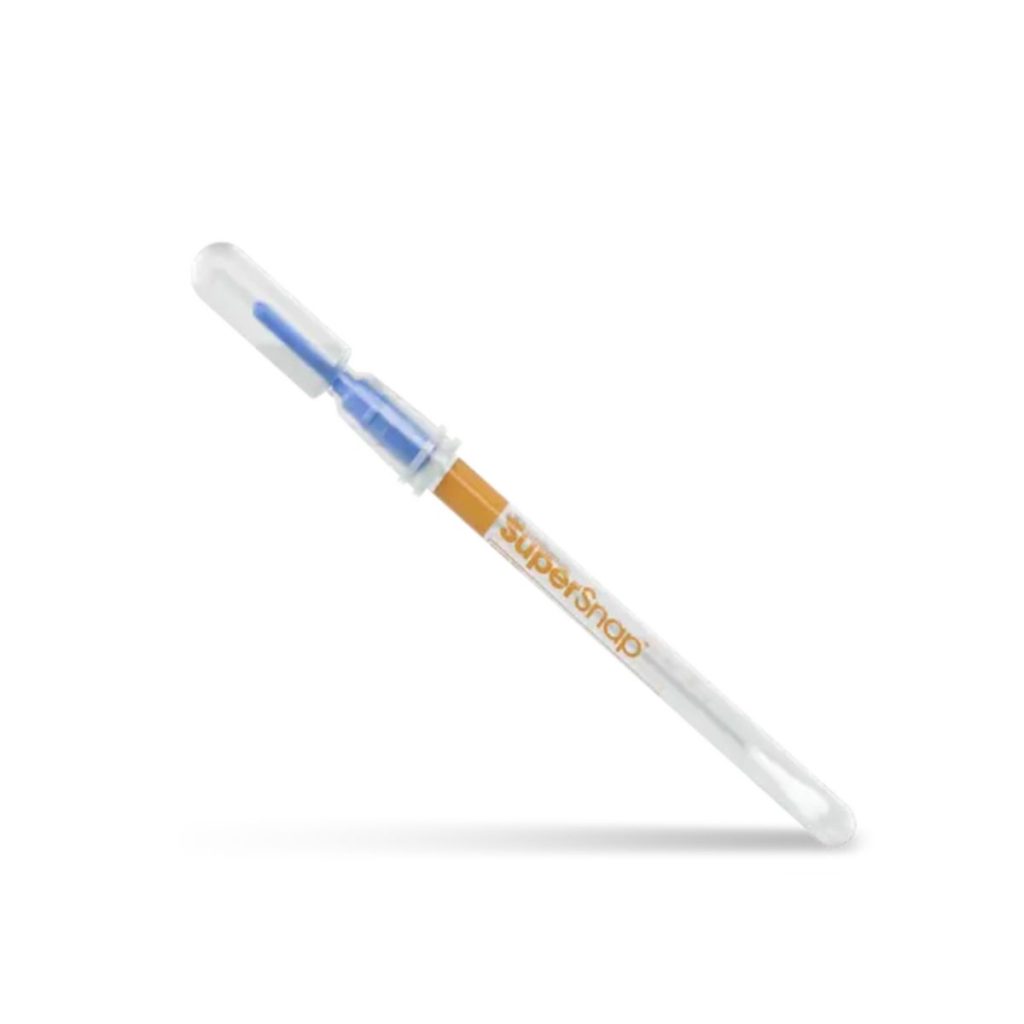

High Sensitivity ATP Surface Test is 4x more sensitive than UltraSnap® ; it is capable of detecting extremely low levels of ATP, making it perfect for supporting stringent SOPs. Like all Hygiena® swabs, it’s extremely easy to use: just swab, snap and squeeze. Get results in seconds using the EnSURE® Touch Monitoring System so you can take immediate corrective actions and get back to production.

Effective for supporting stringent SOPs, preventing allergen cross-contamination, and monitoring for biofilms.
Made from 100% recyclable plastics.
15-month shelf life at 2-8°C, with tolerance for 4 weeks at room temperature (below 25°C).
An all-in-one device with a pre-moistened swab for superior sample collection, a patented Snap-Valve for easy activation, and a liquid-stable reagent.
Provides rapid results in seconds, allowing for immediate corrective actions.
Works with all Hygiena ATP luminometers, including SystemSURE Plus and EnSURE systems.
Four times more sensitive than the UltraSnap, detecting extremely low levels of ATP.

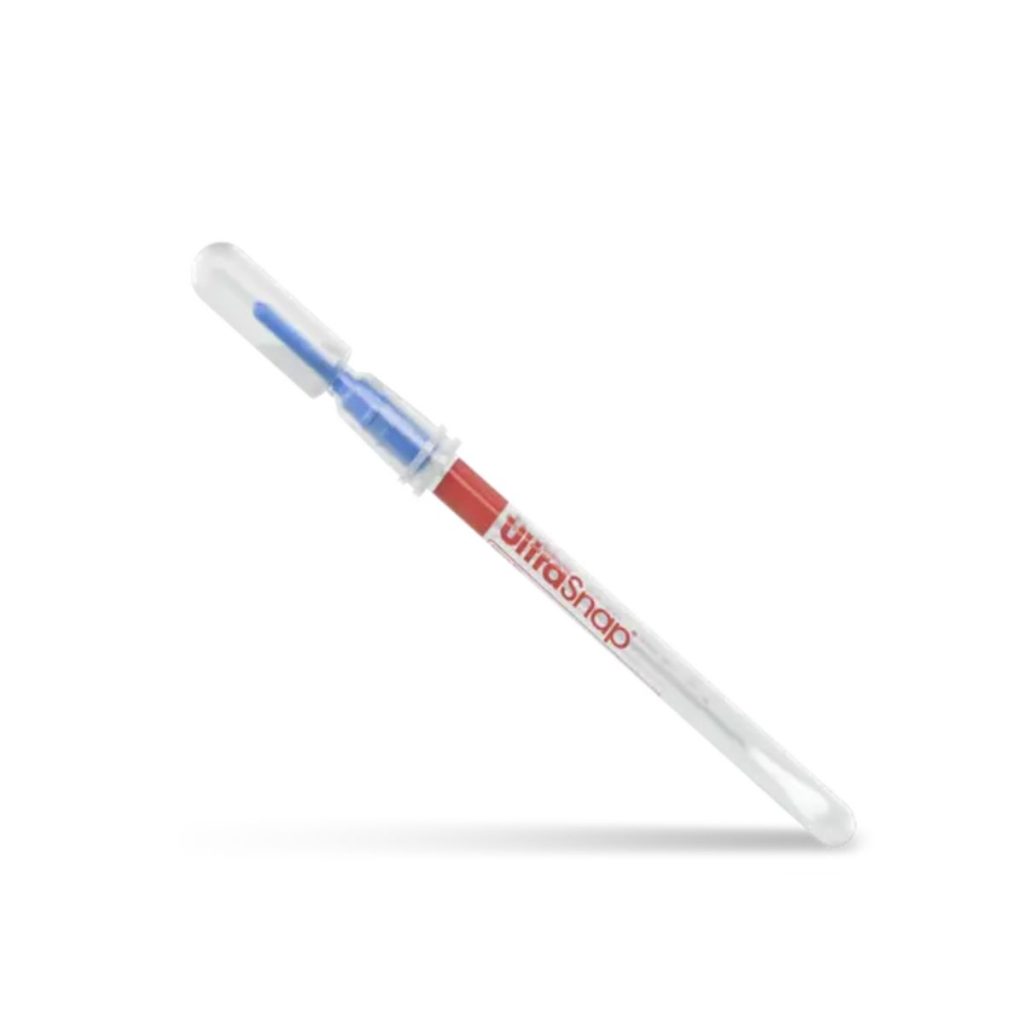

UltraSnap® is a user-friendly, all-in-one ATP sampling test used with Hygiena® luminometers. This pen-sized sample collection device is easy to use, small, and environmentally friendly. In addition, UltraSnap uses a unique liquid-stable reagent providing superior accuracy, longer-lasting signal strength, and more reproducible results.

High sensitivity (0.1-1 femtomoles of ATP)
Unprecedented accuracy and reproducibility
Patented Snap-Valve™ technology and liquid-stable reagent minimize costs while maximizing performance
Test wet or dry surfaces and liquid samples
Results in 15 seconds
Tolerant temperature abuse and sanitizers
100% recyclable plastic
Environmentally conscious design – uses 20 – 80% less plastic than comparable devices
Compatible with SystemSURE Plus and EnSURE luminometers

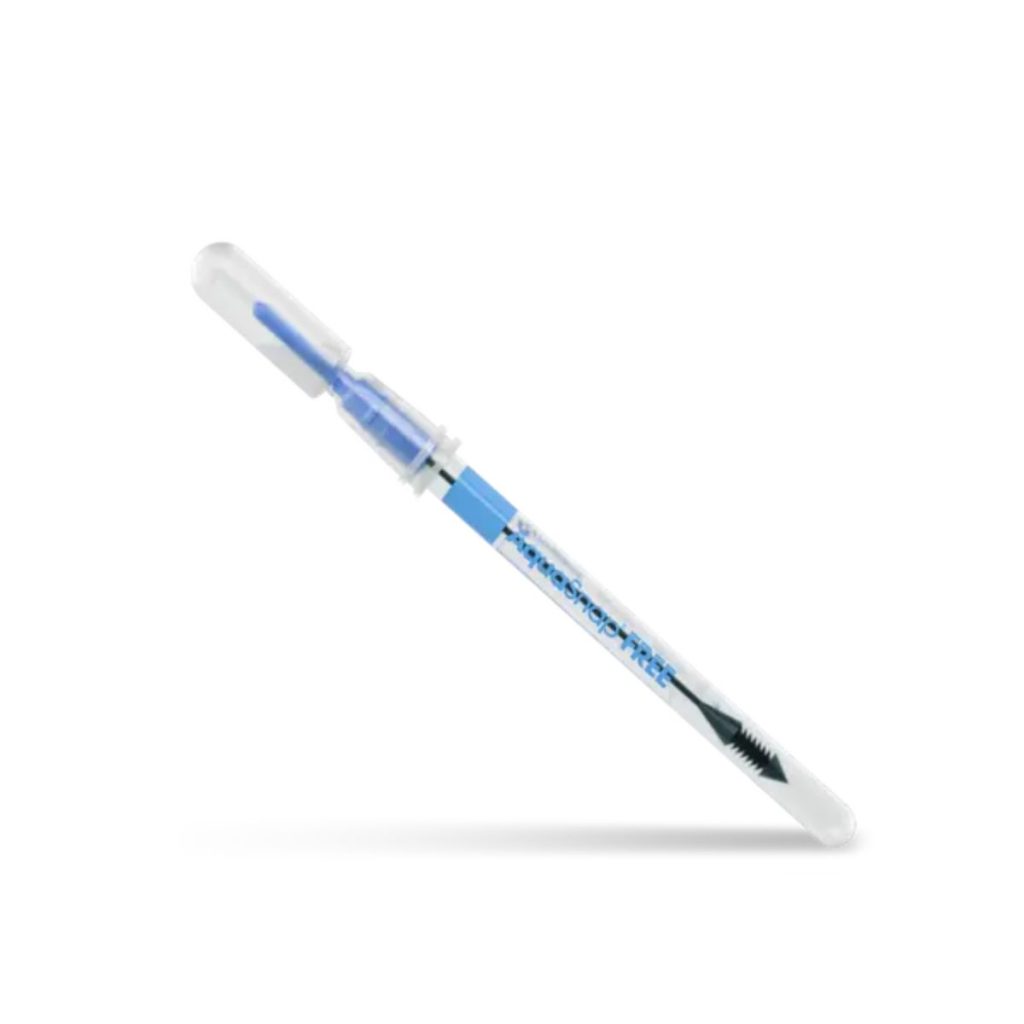

AquaSnap® Free is a water ATP test that measures non-microbial ATP (aka dead cells) in a solution. Use AquaSnap® Free in combination with AquaSnap® Total to identify the microbial ATP in a water sample. First, test a sample of water using AquaSnap® Total and record number (total load). Then, use AquaSnap® Free on the same sample and record this number (free ATP). The difference between AquaSnap® Total and AquaSnap® Free provides an indication of the microbial ATP contamination in the sample. It works hand-in-hand with the EnSURE® Touch Monitoring System.

Water ATP test device.
Measures non-microbial (free) ATP in water samples to detect dissolved organic contamination.
Honeycomb-shaped dipper tip collects a consistent 100 µl sample.
Liquid-stable, ultra-sensitive reagent that replaces freeze-dried enzymes for improved accuracy and reproducibility.
Bioluminescence to measure ATP-induced light emission.
Works with all Hygiena luminometers.
Patented Snap-Valve™ technology for simple activation.
Instant, actionable results displayed on the luminometer in seconds.

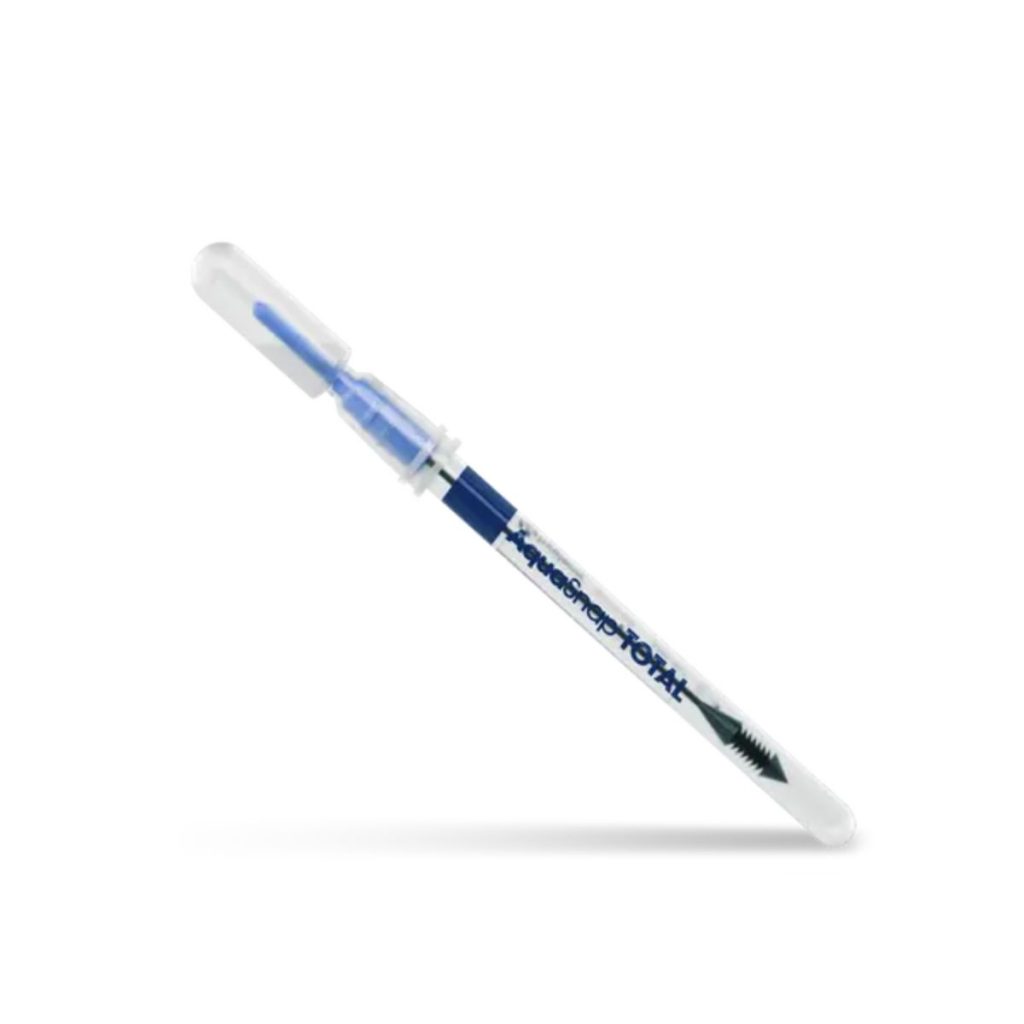

AquaSnap® Total water ATP test measures both microbial ATP (living cells and particulate matter) and free ATP (non-microbial or dead cells) in a solution. The device contains a detergent to release ATP that is bound to microbial or organic matter and inside microbes. AquaSnap® is easy to use, economical, and gives real-time results when read in the EnSURE® Touch Monitoring System. The specifically designed dipper tip collects 100 µl of water ensuring consistent sample collection. Use AquaSnap® Total in combination with AquaSnap® Free to determine microbial ATP in a water sample.

Analyte: Total ATP (Free + Microbial)
Test Method: ATP Bioluminescence
Sample Volume: 100 µL
Sample Collection: Patented honeycomb-shaped dipper tip
Reagent: Liquid-stable, with built-in detergent to release ATP
Packaging: 100 tests per case
Shelf Life: 15 months (2-8°C); 4 weeks (21-25°C) from date of manufacture
Key Features: All-in-one design, no reagent reconstitution, no pipetting required
