Biolin – Force Tensiometers
Measurements
- Surface tension
- Interfacial tension
- Critical Micelle Concentration
- Dynamic contact angle
- Surface free energy
- Powder wettability
- Density
- Sedimentation
- Adhesion force
Full Automation for High Precision
The systems can be fully automated, avoiding user variation and saving you time. Highly precise measurements can be performed easily with just one click.
Optimized Yet Versatile
Sigma 700 and 701 have full support of all measurement modes, making them adaptable to all measurements and applications. However, they are also optimized for different experiments. Sigma 700 is the optimal choice especially for powder wettability and contact angle experiments. Sigma 701 is a great choice for surface tension and interfacial tension experiments due to its very high sensitivity.
Sophisticated Software
The OneAttension Software provide all measurement modes, full automation, easy measurement setup and live results. But above all, it is really user friendly and intuitive.
Technical Specifications
| Available Measurements | Sigma 700 | Sigma 701 | Sigma 702 | Sigma 702 ET | Sigma 703 D |
| Surface tension | V | V | V | V | V |
| Interfacial tension | V | V | V | V | V |
| Critical Micelle Concentration | Automatic | Automatic | Manual | Manual | Manual |
| Dynamic contact angle | V | V | – | – | – |
| Surface free energy | V | V | – | – | – |
| Powder wettability | V | V | – | – | – |
| Density | V | V | V | V | V |
| Sedimentation | V | V | – | – | – |
| Balance Specifications | Sigma 700 | Sigma 701 | Sigma 702 | Sigma 702 ET | Sigma 703 D |
| Measuring range (mN/m) | 1…2000 | 1…2000 | 1…1000 | 1…1000 | 1…1000 |
| Displayed resolution (mN/m) | 0.001 | 0.001 | 0.01 | 0.01 | 0.01 |
| Density range (g/cm3) | 0…2.2 | 0…2.2 | 0…2.2 | 0…2.2 | 0…2.2 |
| Density resolution (g/cm3) | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.0001 |
| Maximum load (g) | 210 | 5 | 5 | 5 | 5 |
| Weighing resolution (mg) | 0.01 | 0.005 | 0.01 | 0.01 | 0.01 |
| Force resolution (µN) | 0.1 | 0.05 | 0.1 | 0.1 | 0.1 |
| Contact angle range (°) | 0…180 | 0…180 | – | – | – |
| Contact angle resolution (°) | 0.01 | 0.01 | – | – | – |
| Calibration & Locking | Automatic | Manual | Manual | Manual | Manual |
| Measuring Unit Specifications | Sigma 700 | Sigma 701 | Sigma 702 | Sigma 702 ET | Sigma 703 D |
| Sample stage | Motorized | Motorized | Motorized | Motorized | Manual |
| Sample stage speed (mm/min) | 0.01…500 | 0.01…500 | 0.01…500 | 0.01…500 | – |
| Stage positioning resolution (µm) | 0.016 | 0.016 | 0.26 | 0.26 | – |
| Dimensions (L×W×H, cm) | 33.3×24.4×62 | 33.3×24.4×62 | 33.3×24.4×62 | 33.3×24.4×62 | 27.5×15.5×39 |
| Weight (kg) | 16.3 | 13 | 10.7 | 10.7 | 4.9 |
| Power supply (VAC) | 85…264 | 85…264 | 85…264 | 85…264 | 100…240 |
| Power consumption (W) | 13 | 13 | 13 | 13 | 7 |
| Frequency (Hz) | 47…440 | 47…440 | 47…440 | 47…440 | 50…60 |
Available Models
Dive into the specifics of Sigma 700/701 and compare them to each other to make a smart decision on what you need. Sigma 700 and 701 have full support of all measurement modes, making them adaptable to all measurements and applications. However, they are also optimized for different experiments. Sigma 700 is the optimal choice especially for powder wettability and contact angle experiments. Sigma 701 is a great choice for surface tension and interfacial tension experiments due to its very high sensitivity.
What you can measure
- Surface tension: Du Noüy ring and Wilhelmy plate methods
- Interfacial tension: Du Noüy ring and Wilhelmy plate methods
- Critical Micelle Concentration: Du Noüy ring and Wilhelmy plate methods
- Dynamic contact angle: Wilhelmy methods
- Surface free energy: Based on contact angle measurements
- Powder wettability: Washburn method
- Density: Density probe
- Sedimentation: Sedimentation probe
- Adhesion force: Liquid droplet pull-off method

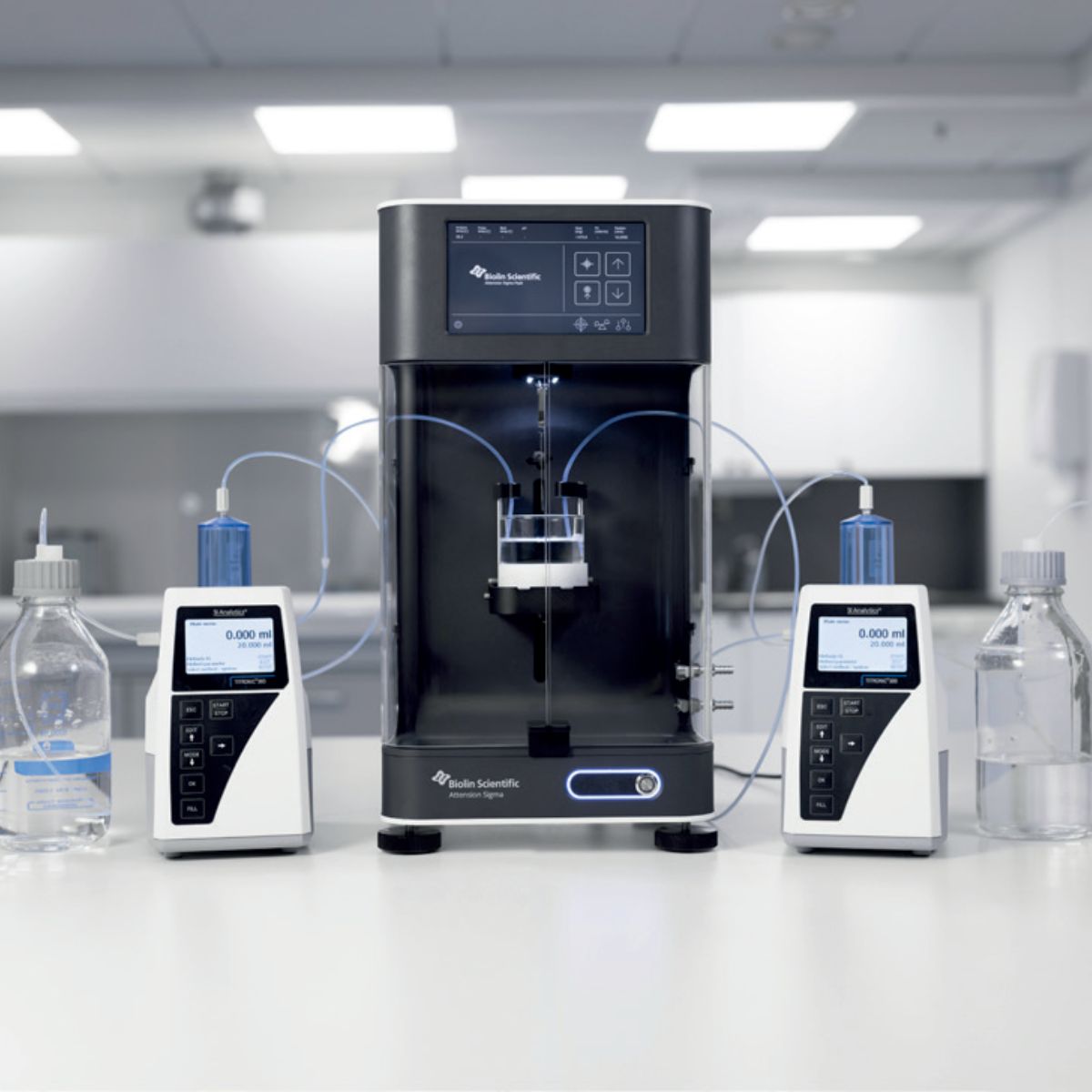

Sigma CMC is based on the versatile Sigma 701 that is known for its particularly high sensitivity. It can also be used with the Sigma 700 which is optimized for powder wettability and contact angle measurements.
What you can measure
- Critical Micelle Concentration: Du Noüy ring and Wilhelmy plate methods
- Surface tension: Du Noüy ring and Wilhelmy plate methods
- Interfacial tension: Du Noüy ring and Wilhelmy plate methods
- Dynamic contact angle: Wilhelmy methods
- Surface free energy: Based on contact angle measurements
- Powder wettability: Washburn method
- Density: Density probe
- Sedimentation: Sedimentation probe
- Adhesion force: Liquid droplet pull-off method
A standalone force tensiometer with automated sample stage for precise measurements. Easy to operate.
What you can measure
- Surface tension: Du Noüy ring and Wilhelmy plate methods
- Interfacial tension: Du Noüy ring method
- Critical Micelle Concentration: Manual measurements with Du Noüy ring and Wilhelmy plate methods
- Density: Density probe
Transformer Oil Analyzer specifically designed for measurements of interfacial tension of transformer oil according to relevant standards.
What you can measure
- Oil-water interfacial tension: Measured with a Du Noüy ring in accordance to the ASTM D971 and IEC 62961 standards
- Surface tension: Du Noüy ring method
- Interfacial tension: Du Noüy ring method
- Critical Micelle Concentration: Manual measurements with Du Noüy ring
- Density: Density probe
A manual standalone force tensiometer. Easy to use and perfect for simple measurements of surface tension and interfacial tension.
What you can measure
- Surface tension: Du Noüy ring and Wilhelmy plate methods
- Interfacial tension: Du Noüy ring method
- Critical Micelle Concentration: Manual measurements with Du Noüy ring and Wilhelmy plate methods
- Density: Density probe

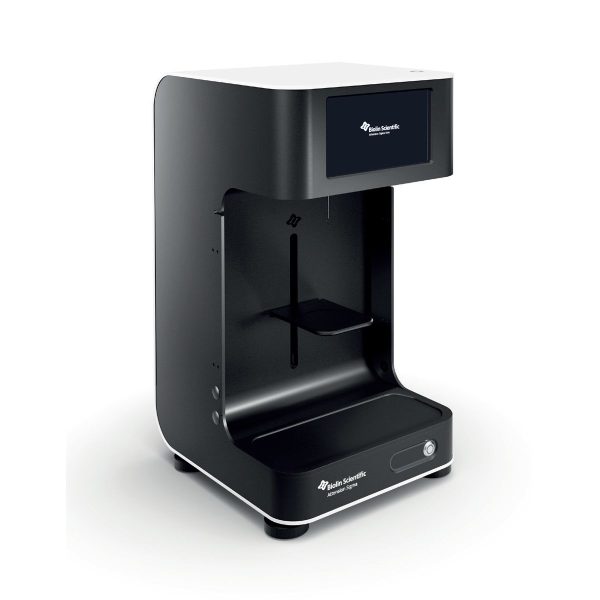

Force Tensiometer – Sigma 700/701
Biolin Scientific – Sigma 702ET Transformer Oil Analyzer
Biolin Scientific – Sigma CMC
Brand
Biolin Scientific is a worldwide company making state of the art instruments and smart solutions for scientists. Knowledge is our greatest resource and an essential part of everything we do. In collaboration with leading universities and industries, we solve challenges to simplify the everyday life in the lab. Our customers are the experts in surface science, and we have the tools for them to progress.
The Biolin Scientific portfolio consists of the following brands: Attension®, KSV NIMA and QSense.
