Binder – Drying and Heating Chambers – Series ED Classic.Line – With Natural Convection
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
The BINDER ED Classic. Line drying chambers offer efficient natural convection for uniform drying and sterilization up to 300 °C. Features include APT.line™ technology, adjustable exhaust air flap, and a controller with timer functions.
Key Features
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
Technical Specifications

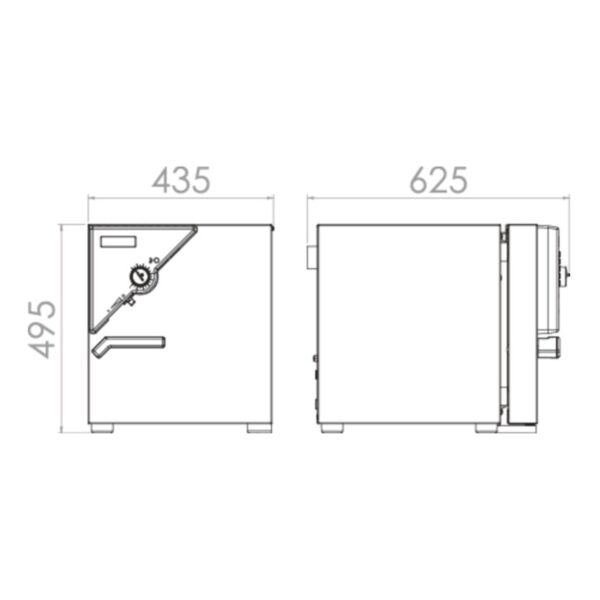

| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| ED 23 | 435 x 495 x 520 mm | 222 x 330 x 300 mm | 27 kg | 20 L |
| ED 400 | 1235 x 1025 x 765 mm | 1000 x 800 x 520 mm | 125 kg | 400 L |
Available Models
- Temperature range: room temperature plus 5 °C to 300 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Temperature range: room temperature plus 5 °C to 300 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Multi Management Software APT-COM™
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
