  • Brochure ATTO Protein Electrophoresis WSE-1510

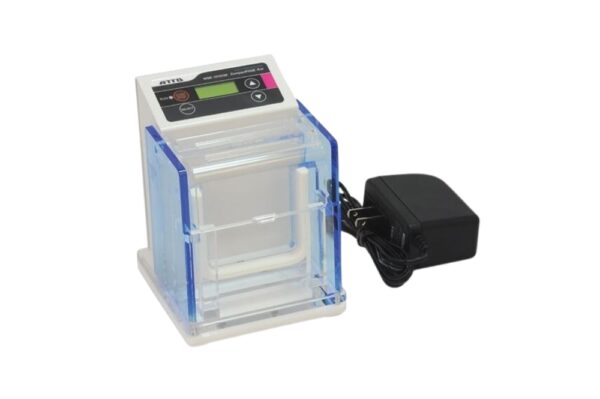

Compact-slab size electrophoresis system with built-in Power Supply.

Available Models

Technical Specifications

Plate size76 (W) x 70 (H) x 4.8 (D) mm
Gel size60 (W) x 60 (H) x 0.75 (D) mm
Number of gels1 gel
Buffer volume170 mL (45 mL for upper chamber, 125 mL for lower chamber)
MaterialChamber: Acrylic plastic and silicone
ModeHigh mode: 24 W / Std mode: 21 mA / Low mode: 10.5 mA
PowerAC100-240V 50/60 Hz
Dimension104 (W) x 108 (D) x 137 (H) mm (Without accessories and projection)
Weight0.6 kg (without accessories)
ComponentMain unit, AC adaptor, Cable extension
View the entire technical specifications in the brochure.

Applications

  • Separation of Protein, purity determination, estimation of purified product, and expressed protein
  • Screening, Protein or Nucleic Acid electrophoresis for entry-level experiments and students
  • SDS-PAGE, nativePAGE, DNA-PAGE

Visit the brochure to find out more about the application.

Key Features

  • The fastest electrophoresis time: 10 min (High mode)
  • The system’s built-in power supply
  • Compact size, Reduce working space
  • Easy operation with precast running condition
  • Available for both the precast gel and hand-made gel
  • Cut the amount of buffer and reagent
  • Compatible caster: AE-7310 Compact Gel Cast, WSE-1090 Multi Compact Gel Cast
  • Compatible precast gel: ATTO Precast Compact Gel (c-PAGEL, c-PAGEL HR, cp-PAGEL)

Technical Specifications

Plate size76 (W) x 70 (H) x 4.8 (D) mm
Gel size60 (W) x 60 (H) x 0.75 (D) mm
Number of gels1 or 2 gels
Buffer volume170 mL (45 mL for upper chamber, 125 mL for lower chamber) per 1 gel
MaterialChamber: Acrylic plastic and silicone
ModeHigh mode: 24 W / Std mode: 21 mA / Low mode: 10.5 mA
PowerAC100-240V 50/60 Hz
Dimension199 (W) x 108 (D) x 137 (H) mm (Without accessories and projection)
Weight0.9 kg (without accessories)
ComponentMain unit, AC adaptor, Cable extension
View the entire technical specifications in the brochure.

Applications

  • Separation of Protein, purity determination, estimation of purified product, and expressed protein
  • Screening, Protein or Nucleic Acid electrophoresis for entry-level experiments and students
  • SDS-PAGE, nativePAGE, DNA-PAGE

Visit the brochure to find out more about the application.

Key Features

  • The fastest electrophoresis time: 10 min (High mode)
  • The system’s built in power supply
  • Compact size, Reduce working space
  • Easy operation with precast running condition
  • Available for both the precast gel and hand-made gel
  • Cut the amount of buffer and reagent
  • Compatible caster: AE-7310 Compact Gel Cast, WSE-1090 Multi Compact Gel Cast
  • Compatible precast gel: ATTO Precast Compact Gel (c-PAGEL, c-PAGEL HR, cp-PAGEL)

Technical Specifications

Plate size76 (W) x 70 (H) x 4.8 (D) mm
Gel size60 (W) x 60 (H) x 0.75 (D) mm
Number of gels1 gel
MaterialGel caster (Acrylic, Silicone, Stainless steel, Aluminium), Plate (Glass)
Dimension93 (W) x 45 (D) x 75 (H) mm (Main unit only)
Weight0.2 kg (Main unit only)
ComponentMain unit, Notched glass plate for AE-7310/WSE-1090 1ea, Plain glass plate for AE-7310/WSE-1090 1 ea, 12-well compact comb for AE-7310/WSE-1090 1 ea
View the entire technical specifications in the brochure.

Applications

  • Gel casting kit for compact size (60 x 60 mm, thickness 0.75 mm) slab gel

Visit the brochure to find out more about the application.

Key Features

  • Easy setting; piling plates and fixing by clips
  • Compatible electrophoresis apparatus: ATTO Compact Gel Electrophoresis System (WSE-1010 cPAGE Ace, WSE-1025 cPAGE Ace Twin)
  • Gel casting kit for compact size: 60 x 60 mm, thickness 0.75 mm
  • Max 4 Mini-Slab gels caster

Technical Specifications

Plate size100~120 (W) x max. 102 (H) mm, maximum thickness 7 mm
Gel size1 or 2 gels
Buffer volume400~650 mL
MaterialAcrylic (Chamber), Poly-carbonate, silicone
Unit size, weight165 (W) x 99 (D) x 134 (H) mm, 0.9 kg (without accessory)
ComponentMain chamber x 1 (including leads with safety cover), H holder x 2, 5 mm dummy plate x 1
View the entire technical specifications in the brochure.

Applications

  • High-speed electrophoresis: 20-25min (For high-speed electrophoresis, use [WSE-7065 EzRunMOPS])
  • SDS-PAGE(SDS-Polyacrylamide Gel Electrophoresis)
  • Native-PAGE
  • High-resolution separation of protein and nucleic acid
  • Purity determination, Estimation of purified product, and expressed protein
  • Screening
  • For beginners of electrophoresis and students training

Visit the brochure to find out more about the application.

Key Features

  • mini PAGE system with a built-in power supply
  • High mode
  • Reduce working space
  • Automatic polarity switching function
  • Quick sealing method
  • Prevent leakage of a buffer solution with flexible material in a special wave shape; electrophoresis plate and gel are firmly retained
  • Two-sided constant temperature by using a lower buffer solution for reducing the thermostatic smiling
  • Compatible caster: AE-6401 1 mm Dual Mini Gel Cast (Holder for Hand-Cast Gel), WSE-1190 Multi Mini-Slab Gel Cast (Holder for PAGEL)
  • Compatible precast gel (Holder for PAGEL): e-PAGEL, e-PAGEL HR

Technical Specifications

ModelsWSE-1150MWSE-1150P
Plate sizeFor Hand-made gel 120 (W) x 102 (H) x 7 (D) mmFor Precast gel (PAGEL series) 120 (W) x 100 (H) x 5 (D) mm
Gel size90 (W) x 80 (H) x 1 (D) mm90 M x 83 (H) x 1 (D) mm
Number of gelsUp to 2 gelsUp to 2 gels
Plate settingOne-touch sealingOne-touch sealing
Buffer volumeUpper: 80 mL, Lower: 420 mLUpper: 80 mL, Lower: 420 mL
Power supply100~240 V, 50/60 Hz, 50VA100~240 V, 50/60 Hz, 50VA
PolarityAutomatic polarity switching function (Always lower electrode is anode (+) whichever side the power supply unit is connected)Automatic polarity switching function (Always lower electrode is anode (+) whichever side the power supply unit is connected)
Output modeStandard mode: 1 gel / 2 gels High mode: 1 gel / 2 gels Low mode: 1 gel / 2 gelsStandard mode: 1 gel / 2 gels High mode: 1 gel / 2 gels Low mode: 1 gel / 2 gels
AC adapterInput: 100-240 V, Output: 24 VDC/1.5AInput: 100-240 V, Output: 24 VDC/1.5A
CompositionHand-Cast Gel type chamber 1 ea, Power supply 1 ea, AC adapter 1ea. 7 mm dummy plate 1 eaPAGEL type chamber 1 ea, Power supply 1 ea, AC adapter 1ea, 5 mm dummy plate 1 ea
MaterialPower supply case: ABS Chamber: Polycarbonate, SiliconePower supply case: ABS Chamber: Polycarbonate, Silicone
Dimension164 (W) x 94 (D) x 193 (H) mm (Without power supply and AC adapter)164 (W) x 94 (D) x 193 (H) mm (Without power supply and AC adapter)
Weight0.74 kg (Without AC adapter and plates)0.74 kg (Without AC adapter and plates)
View the entire technical specifications in the brochure.

Applications

  • High-speed electrophoresis: 20-25min (For high-speed electrophoresis, use [WSE-7065 EzRunMOPS])
  • SDS-PAGE(SDS-Polyacrylamide Gel Electrophoresis)
  • Native-PAGE
  • High-resolution separation of protein and nucleic acid
  • Purity determination, Estimation of purified product, and expressed protein
  • Screening
  • For beginners of electrophoresis and students training

Visit the brochure to find out more about the application.

Key Features

  • mini PAGE system with a built-in power supply
  • High mode
  • Reduce working space
  • Automatic polarity switching function
  • Quick sealing method
  • Prevent leakage of a buffer solution with flexible material in a special wave shape; electrophoresis plate and gel are firmly retained
  • Two-sided constant temperature by using a lower buffer solution for reducing the thermostatic smiling
  • Compatible caster: AE-6401 1 mm Dual Mini Gel Cast (Holder for Hand-Cast Gel), WSE-1190 Multi Mini-Slab Gel Cast (Holder for PAGEL)
  • Compatible precast gel (Holder for PAGEL): e-PAGEL, e-PAGEL HR

Technical Specifications

Plate size120 (W) x 102 (H) mm, total thickness 7 mm
Gel size90 (W) x 80 (H), thickness 1 mm
Number of gelsUp to 2 plates
Sample comb12-well comb (Well 4.5 mm wide, about 30 uL/well), 1 mm thickness, PP molding
MaterialGlass, Silicone, Polypropylene, Polyvinyl chloride, Stainless steel
Dimension140 (W) x 15 (D) x 110 (H) mm (When it is assembled)
Weight0.54 kg (2 sets total)
Component1 mm Notched glass plate 2 ea, Plain glass plate 2 ea, 1 mm gasket 2 ea, Clip 4 ea, 1 mm 12-well comb 2 ea
View the entire technical specifications in the brochure.

Applications

  • Gel caster for ATTO Mini size gel
  • Available for hand-made gel casting of electrophoresis in the below
  • SDS-PAGE
  • nativePAGE
  • Separation of Protein, purity determination, estimation of purified product, and expressed protein
  • Examination of purified product and expressed proteins
  • DNA electrophoresis, Detection of PCR products
  • Screening
  • Experimental training for students or researchers
  • Determination of enzyme form

Visit the brochure to find out more about the application.

Key Features

  • Easy setting with specially designed seal gaskets and clips
  • Compatible electrophoresis apparatus: ATTO Mini Gel Size Electrophoresis System (WSE-1150M PageRunAce, WSE-1165 Mini-Slab)

This gel cast includes plates whose total thickness is 7 mm, so a Plate holders for Hand-Cast Gel is required.

Technical Specifications

Plate size120 (W) x 100 (H) mm, Total thickness 5 mm
Gel size90 (W) x 83 (H) mm, thickness 1 mm
Number of gelsup to 4 gels
Sample comb12-well comb (Well 4.5 mm wide, about 30 uL/well), 1 mm thickness, PP molding
MaterialMain body (Acrylic, silicone, stainless steel, aluminium), Plate (glass)
Dimension176 (W) x 45 (D) x 129 (H) mm
Weight0.65 kg (main body only)
ComponentGel cast main body 1 ea, glass plates 4 set (Notched plate 4 ea, Plain plate 4 ea), 12-well comb 4 ea, Dummy plate 1 ea, Spacer plate 6 ea
View the entire technical specifications in the brochure.

Applications

  • Up to 4 pieces of Mini-Slab size (90 x 83 mm, thickness 1 mm) gels can be made simultaneously with this gel casting kit
  • Available for hand-made gel casting of electrophoresis in the below
  • SDS-PAGE
  • nativePAGE
  • Separation of Protein, purity determination, estimation of purified product, and expressed protein
  • Examination of purified product and expressed proteins
  • DNA electrophoresis, Detection of PCR products
  • Screening
  • Experimental training for students or researchers
  • Determination of enzyme form

Visit the brochure to find out more about the application.

Key Features

  • Easy setting: piling plates in gel caster and fixing by clips
  • (Seal gasket is not necessary)
  • Max 4 pieces can be made
  • Glass plates only for this gel cast  are adopted so seal gasket is unnecessary
  • Attached to glass plate sets & combs for 4 pieces of gel
  • Compatible electrophoresis apparatus: ATTO Mini Gel Size Electrophoresis System (WSE-1150MW PageRunAce, WSE-1165 Mini-Slab)

This gel cast includes plates whose total thickness is 5 mm, so Plate holder for PAGEL are required.

Technical Specifications

Plate size160 (W) x 100 (H) mm, thickness 5 mm
Gel size140 (W) x 80 (H) mm, thickness 1 mm
Number of gelsUp to 2 gels, 30 samples/gel
Sample applyMax 20 uL/well, multi pipette available
Plate settingPress a ‘H’ holder
Buffer volumeTotal 900 mL (Max)
Chamber polarityAuto switching polarity (Bottom electrode is automatically to be anode(+) without failing by miss-connecting of electrodes)
SafetyPower lead cable with safety cover
MaterialAcrylic. Silicone
ComponentChamber ” ea Power lead cable with safety cover 1 ea. “H’ holder 2 ea. 5 mm thickness dummy plate 1 ea
Unit size204 W x 99 (D) x 130 (H) mm, exclude a projection
Weight0.9 kg, excluded a migration plate
View the entire technical specifications in the brochure.

Applications

  • A lot of samples(30) can be analyzed in one gel at once by electrophoresis
  • SDS-PAGE(SDS-polyacrylamide gel electrophoresis)
  • Non-denaturing polyacrylamide gel electrophoresis
  • Protein・Separation・Identification, Purity confirmation Molecular weight estimation, etc.
  • Confirm the Purifies and the expression levels of protein
  • Electrophoresis of DNA, confirmation of PCR products

Visit the brochure to find out more about the application.

Key Features

  • Many Samples Available:

Electrophoresis for large-scale screening.

Comparable to many samples in one gel at once under the same experimental condition.

  • Faster and Higher-Resolution Electrophoresis:

“High mode electrophoresis” completes in 30 minutes (300V c.v.).

Recommended to use e-PAGEL HR or hand-made gel with ATTO EzGel Ace buffer and ATTO EzRunMOPS buffer.

  • Usable with Multi-channel Pipette:

Sample well intervals are 4.5mm pitch, suitable for Multi-channel Pipette usage.

  • Gel Length:

Same as mini gel (approx. 8cm).

Comparable electrophoresis pattern to mini gel.

Sufficient gel length ensures precise protein band patterns.

  • Constant Temperature Maintenance:

Plenty of upper/lower buffer maintains constant temperature, reducing the smiling effect.

  • Auto Switching Polarity:

Bottom electrode automatically switches to anode(+), preventing failure due to misconnection of electrodes.

  • Easy Sample Application:

Visible electrophoresis tank (Front open view).

  • Easy Gel Plate Set-up:

Special plate holder ‘H’ holder facilitates stress-free setting of glass plates into the chamber.

  • Well-Shaped “Perfect Seal Packing”:

Prevents buffer leaking with softness and compactness.

  • High-Quality Durable Acrylic Material:

RI blocking effect.

  • Compatibility:

Compatible caster: WSE-1195 Multi Mini-Slab Gel Cast.

Compatible precast gel: m-PAGEL.

Technical Specifications

Plate size160 (W) x 100 (H) mm, Total thickness 5 mm
Gel size140 (W) x 80 (H) mm, thickness 1 mm
Number of gelsup to 4 gels
Sample comb30-well comb (Well 3 mm wide, about 20 uL/well), 1 mm thickness, PP molding
MaterialMain body (Acrylic, silicone, stainless steel, aluminium), Plate (glass)
Dimension197 (W) x 45 (D) x 129 (H) mm
Weight0.7 kg (main body only)
ComponentGel cast main body 1 ea, glass plates 2 set (Notched plate 2 ea, Plain plate 2 ea), 30-well comb 2 ea, Dummy plate 1 ea, Spacer plate 6 ea
View the entire technical specifications in the brochure.

Applications

  • Up to 4 pieces of Wide-Slab size (140 x 80 mm, thickness 1 mm) gels can be made simultaneously with this gel casting kit
  • Available for hand-made gel casting of electrophoresis in the below
  • SDS-PAGE
  • nativePAGE
  • Separation of Protein, purity determination, estimation of purified product, and expressed protein
  • Examination of purified product and expressed proteins
  • DNA electrophoresis, Detection of PCR products
  • Screening
  • Experimental training for students or researchers
  • Determination of enzyme form

Visit the brochure to find out more about the application.

Key Features

  • Easy Setup:

Plates can be piled in the gel caster and secured with clips.

No seal gasket required.

  • Maximum Capacity:

Can accommodate up to 4 pieces.

  • Glass Plates:

Exclusively uses glass plates, eliminating the need for a seal gasket.

  • Included Accessories:

Comes with glass plate sets & combs for 2 pieces of gel.

Additional plates and combs needed to produce 4 gels simultaneously.

  • Compatibility:

Compatible with the ATTO Wide Gel Electrophoresis System (WSE-1170 Multi-Lane Gel Chamber).

Technical Specifications

Plate size160 (W) x 160 (H) mm, thickness 10.5-12 mm
Gel size138 (W) x 130 (H) mm, thickness 0.5-2 mm
Number of gelsUp to 2 gels
Plate settingWith pressure platen
Temperature controlSingle face
Buffer volume480 mL for upper chamber, 450 mL for lower chamber
Cover lidSafety lid with lead wires
Weight0.7 kg (main body only)
MaterialAcrylic plastic and stainless steel
CompositionElectrophoresis chamber 1 ea, Pressure platen 2 ea, safety lid with lead wires 1 ea, dummy plate 1 ea
Dimenstions211 (W) x 196 (D) x 205 (H) mm
Weight2.3 kg (without accessories)
View the entire technical specifications in the brochure.

Applications

  • Protein separation & identification, determination of purity, estimation of molecular weight
  • Examination of purified product and expressed proteins
  • Determination of enzyme form
  • SDS-PAGE, nativePAGE
  • DNA-PAGE

Visit the brochure to find out more about the application.

Key Features

  • Simple specifications, so samples are easily seen during addition and it is always clean since cleaning is easy
  • Safe operation with a safety cover with lead wire without using metal clips
  • Various combs are available
  • Dual gel system
  • Compatible caster: AE-6210 Slab Gel Cast

Technical Specifications

Plate size160 (W) x 160 (H) mm. Total thickness 11 mm
Gel size138 (W) x 130 (H) mm, thickness 1 mm or 2 mm
Number of gels1 gel
Sample comb12-well comb
MaterialsAcrylic, Stainless steel, Glass, Silicone
Dimenstions250 (W) x 150 (D) x 80 (H) mm (main body only)
Weight1 kg (Main body only)
ComponentGel cast main body 1 ea, Notched plate 1 ea, Plain plate ea. Seal gasket 1 ea. 12-well comb 1 ea
View the entire technical specifications in the brochure.

Applications

  • Gel casting kit for Slab size (138 x 130 mm, thickness 1 mm or 2 mm) gel

Visit the brochure to find out more about the application.

Key Features

  • Easy setting with specially designed parts and seal gasket
  • Easy assembly by putting a pair of glass plates and a sealing gasket together in the set position
  • Even a beginner can hand cast a gel without leaking or drain
  • Ready to cast a gel of 1 to 2.0 mm thickness
  • Compatible electrophoresis apparatus: ATTO Slab Gel Electrophoresis System (AE-6220 Dual Slab Chamber)
Column size7 mm x 75 mm (for compact size) / (7 mm x 100 mm (for mini size)
Number of gelsup to 8 gels
Plate settingwith silicone cap sealing
Buffer volume40 mL for upper chamber, 550 mL for lower chamber
Power supplyConstant voltage 50/100/300/600/900 V step-up Constant voltage 300/600/900 V constant mode (selected below, programmed) Constant current 12 mA
Timer1 to 999 min, 0 min for continuous mode
Safety functionopen/short detection
Alarmoutput stop, time up, error detection
Power requirementAC100-240 V 50/60Hz 50VA
Dimenstions164 (W x 94 (D) x 193 (H) mm
Weight0.81 kg (without accessories)
View the entire technical specifications in the brochure.

Applications

  • 1-D electrophoresis(IEF) for 2-D PAGE
  • For proteome analysis (proteomics), purification product confirmation, and protein separation for mass spectrometry

Visit the brochure to find out more about the application.

Key Features

  • Two-dimensional electrophoresis can be done easily with the use of a version with a power source (electricity conditions entered) and “agarGEL” precast gel and a high level of reproducibility can be obtained 150-210 min. quick electrophoresis time
  • Reduce working space.
  • Agarose gel specifications allow the addition of a sample with a large molecular weight or volume O’Farrell’s specifications also supported
  • With a special gel tray and gel carrier

WSE-1010W

WSE-1025W

Key Industries

  • Biopharmaceutical and Biotechnology
  • Education & Academics
  • Medical
  • Pharmaceutical

Brand

ATTO

ATTO Corporation is a scientific instrument developer and manufacturer of protein/nucleic acid research. Long been providing more than 60 years for Polyacrylamide Gel Electrophoresis Devices, PAGEL (precast gel), Western blot solutions, Peristaltic Pumps, Printgraph (High-end Gel Documentation System), Luminograph series (Imaging System for bio/chemiluminescence detection), etc. Their products have been used in many laboratories in Japan and other countries.

test block for Laos

Your download – just a few steps away

Please enter your details here:

test

Contact us

Contact us
