Armfield – Miniature-Scale Research & Development Technology – FT52 Clean In Place Unit

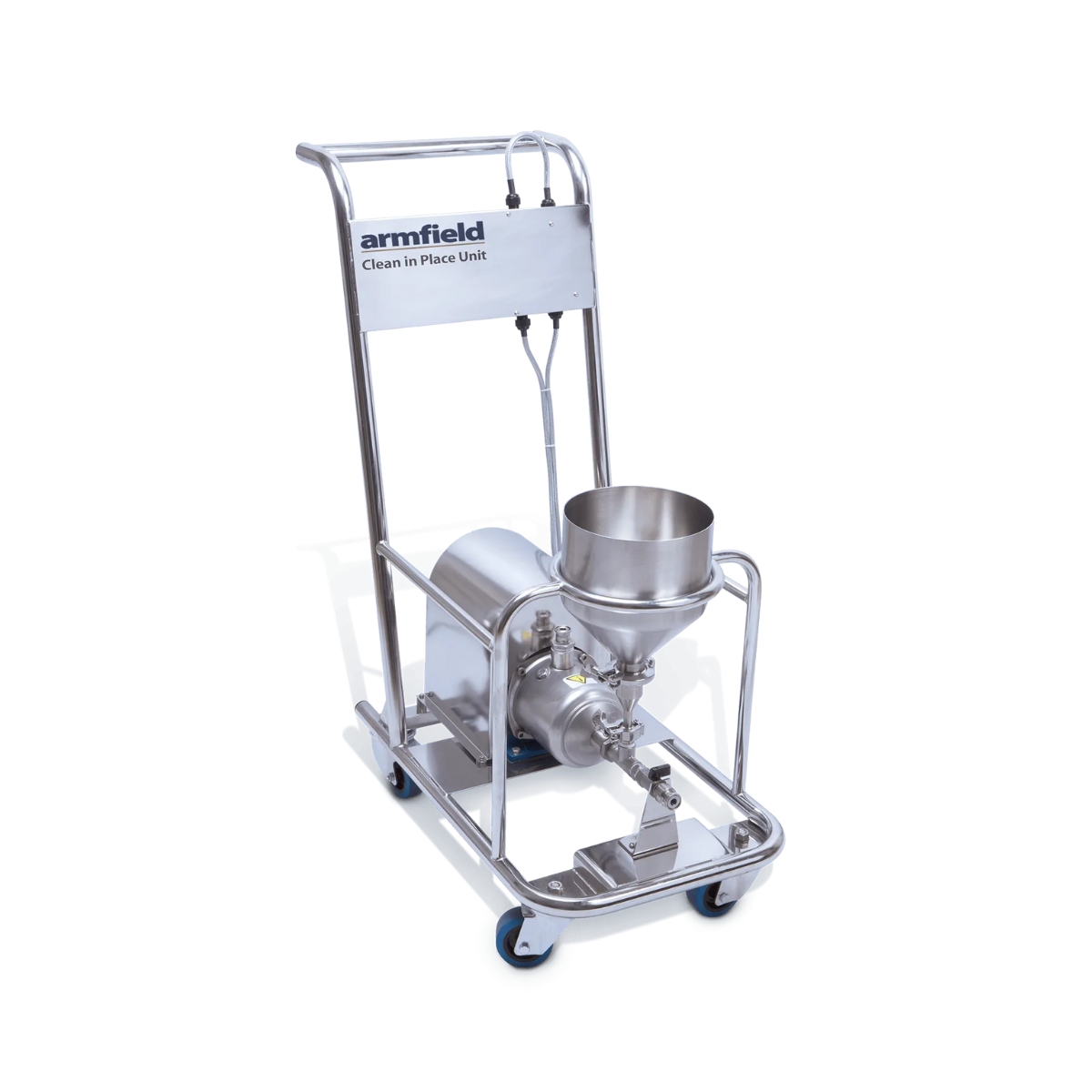

The Armfield FT52 has been designed to provide additional cleaning performance for Armfield FT units and other equipment. It consists of a high flow rate stainless steel centrifugal pump mounted on a mobile frame.
The FT52 uses a stainless steel centrifugal pump to provide high throughputs for efficient cleaning. Achievable flow rates are dependent on the backpressure generated by the system being cleaned. Capacities up to 4.0 m3/h are achievable with low backpressure systems.
The FT52 has a small footprint and is mounted on a mobile platform, so it can easily be positioned in a lab or pilot environment to meet local CIP needs. A stainless steel splash cover protects the pump from spray during laboratory/pilot plant cleaning.
Operation is simple on/off control, which gives the maximum flow rate for efficient cleaning. Flow rates may be adjusted using a backpressure valve (not supplied).
Key Features and Benefits
FT52 Clean In Place Unit
Key Features
- Simple on/off pump control
- Stainless steel pump motor splash cover
- High-pressure hygienic flexible hoses and fittings for quick connection to Armfield equipment
- 5l stainless steel hopper for cleaning solutions
Benefits
- Mobile unit with small footprint providing local CIP capability for pilot-scale equipment
- Produces cleaning velocities in excess of the industry standard 1.5 m/s in Armfield systems
- Capable of flow rates up to 4.0 m3/h
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Oil & Gas
- Pharmaceutical
- Powders & Pigments / Coating
Brand
The Armfield Industrial Division designs and manufactures research & development systems, primarily for the food, beverage, dairy, edible oil and pharmaceutical industries. Used by many of the world’s leading corporations, Armfield systems enable researchers and product developers to replicate full-scale industrial manufacturing processes on a miniature-scale in the laboratory.
